P. 2443

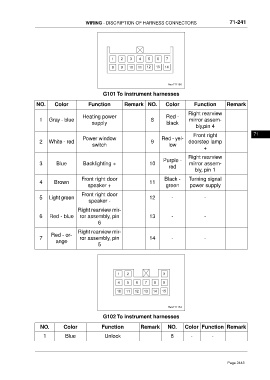

WIRING - DISCRIPTION OF HARNESS CONNECTORS 71-241
12 13 14
ftwx711186
G101 To instrument harnesses
NO. Color Function Remark NO. Color Function Remark
Right rearview
Heating power Red -
1 Gray - blue 8 mirror assem-
supply black
bly,pin 4
Front right 71
Power window Red - yel-
2 White - red 9 doorstep lamp
switch low
+
Right rearview
Purple -
3 Blue Backlighting + 10 mirror assem-
red
bly, pin 1
Front right door Black - Turning signal
4 Brown 11
speaker + green power supply
Front right door
5 Light green 12 - -
speaker -
Right rearview mir-
6 Red - blue ror assembly, pin 13 - -
6
Right rearview mir-
Red - or-
7 ror assembly, pin 14 - -
ange
5
15
ftwx711154
G102 To instrument harnesses
NO. Color Function Remark NO. Color Function Remark
1 Blue Unlock 8 - -
