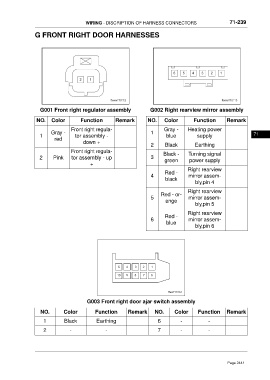

WIRING - DISCRIPTION OF HARNESS CONNECTORS 71-239

G FRONT RIGHT DOOR HARNESSES

G001 Front right regulator assembly G002 Right rearview mirror assembly

NO. Color Function Remark NO. Color Function Remark

Front right regula- Gray - Heating power
Gray - 1
1 tor assembly - blue supply 71
red
down +
2 Black Earthing
Front right regula- Black - Turning signal
2 Pink tor assembly - up 3
green power supply
+
Right rearview
Red -
4 mirror assem-
black
bly,pin 4

Right rearview
Red - or-
5 mirror assem-
ange
bly,pin 5
Right rearview
Red -
6 mirror assem-
blue
bly,pin 6

5 4 3 2 1
10 9 8 7 6

ftwx711032

G003 Front right door ajar switch assembly

NO. Color Function Remark NO. Color Function Remark
1 Black Earthing 6 - -

2 - - 7 - -
