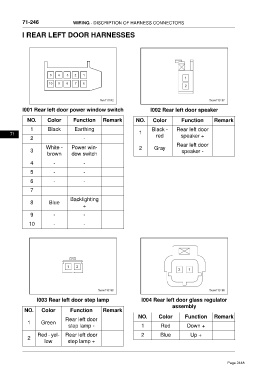

71-246 WIRING - DISCRIPTION OF HARNESS CONNECTORS
I REAR LEFT DOOR HARNESSES
5 4 3 2 1
10 9 8 7 6
ftwx711032
I001 Rear left door power window switch I002 Rear left door speaker
NO. Color Function Remark NO. Color Function Remark
1 Black Earthing Black - Rear left door
71 1 red speaker +
2 -
Rear left door
White - Power win- 2 Gray
3 speaker -
brown dow switch
4 - -
5 - -
6 - -
7
Backlighting
8 Blue
+
9 - -
10 - -
I003 Rear left door step lamp I004 Rear left door glass regulator
assembly
NO. Color Function Remark
NO. Color Function Remark
Rear left door
1 Green
step lamp - 1 Red Down +
Red - yel- Rear left door 2 Blue Up +
2
low step lamp +
