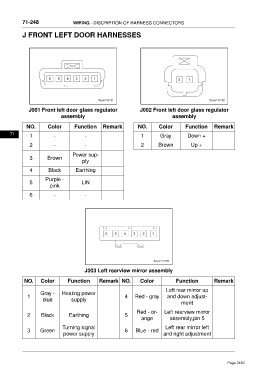

71-248 WIRING - DISCRIPTION OF HARNESS CONNECTORS
J FRONT LEFT DOOR HARNESSES
J001 Front left door glass regulator J002 Front left door glass regulator
assembly assembly
NO. Color Function Remark NO. Color Function Remark
71
1 - - 1 Gray Down +
2 – – 2 Brown Up +
Power sup-
3 Brown
ply
4 Black Earthing
Purple -
5 LIN
pink
6 - -
J003 Left rearview mirror assembly
NO. Color Function Remark NO. Color Function Remark
Left rear mirror up
Gray - Heating power
1 4 Red - gray and down adjust-
blue supply
ment
Red - or- Left rearview mirror
2 Black Earthing 5
ange assembly,pin 5
Turning signal Left rear mirror left
3 Green 6 Blue - red
power supply and right adjustment
