P. 2481

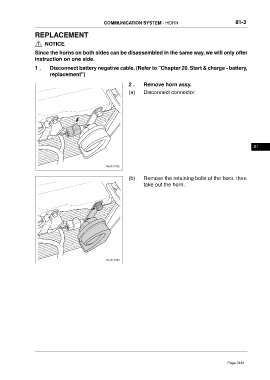

COMMUNICATION SYSTEM - HORN                                 81-3

                 REPLACEMENT

                      NOTICE
                 Since the horns on both sides can be disassembled in the same way, we will only offer
                 instruction on one side.

                 1 .    Disconnect battery negative cable. (Refer to "Chapter 20. Start & charge - battery,
                        replacement")

                                                           2 .    Remove horn assy.

                                                           (a)    Disconnect connector.













                                                                                                                     81



                                                 ftwx811002


                                                           (b)    Remove the retaining bolts of the horn, then
                                                                  take out the horn.



















                                                 ftwx811003
