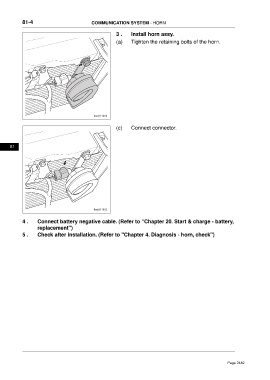

81-4                            COMMUNICATION SYSTEM - HORN

                                                      3 .    Install horn assy.
                                                      (a)    Tighten the retaining bolts of the horn.



















                                            ftwx811003


                                                      (c)    Connect connector.



      81
















                                            ftwx811002

           4 .    Connect battery negative cable. (Refer to "Chapter 20. Start & charge - battery,
                  replacement")
           5 .    Check after installation. (Refer to "Chapter 4. Diagnosis - horn, check")
