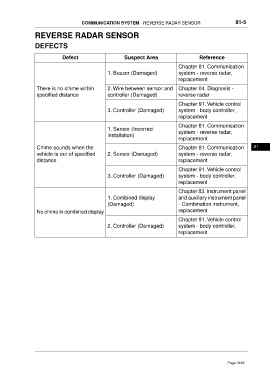

COMMUNICATION SYSTEM - REVERSE RADAR SENSOR 81-5
REVERSE RADAR SENSOR
DEFECTS
Defect Suspect Area Reference
Chapter 81. Communication
1. Buzzer (Damaged) system - reverse radar,
replacement
There is no chime within 2. Wire between sensor and Chapter 04. Diagnosis -
specified distance controller (Damaged) reverse radar
Chapter 91. Vehicle control
3. Controller (Damaged) system - body controller,
replacement
Chapter 81. Communication
1. Sensor (Incorrect
system - reverse radar,
installation)
replacement
Chime sounds when the Chapter 81. Communication 81
vehicle is out of specified 2. Sensor (Damaged) system - reverse radar,
distance replacement
Chapter 91. Vehicle control
3. Controller (Damaged) system - body controller,
replacement
Chapter 83. Instrument panel
1. Combined display and auxiliary instrument panel
(Damaged) - Combination instrument,
No chime in combined display replacement
Chapter 91. Vehicle control
2. Controller (Damaged) system - body controller,
replacement
