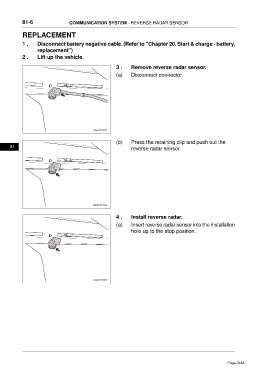

81-6                 COMMUNICATION SYSTEM - REVERSE RADAR SENSOR

           REPLACEMENT

           1 .    Disconnect battery negative cable. (Refer to "Chapter 20. Start & charge - battery,
                  replacement")
           2 .    Lift up the vehicle.
                                                      3 .    Remove reverse radar sensor.

                                                      (a)    Disconnect connector.













                                           ftwx811007


                                                      (b)    Press the retaining clip and push out the
      81
                                                             reverse radar sensor.













                                           ftwx811004


                                                      4 .    Install reverse radar.
                                                      (a)    Insert reverse radar sensor into the installation
                                                             hole up to the stop position.











                                           ftwx811004
