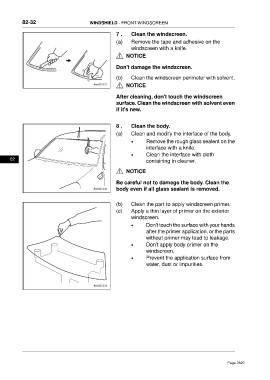

Page 2520 - Foton Workshop Manual - Tunland (AT)

82-32 WINDSHIELD - FRONT WINDSCREEN

7 . Clean the windscreen.
(a) Remove the tape and adhesive on the
windscreen with a knife.
NOTICE

Don't damage the windscreen.

(b) Clean the windscreen perimeter with solvent.

NOTICE

After cleaning, don't touch the windscreen
surface. Clean the windscreen with solvent even
if it's new.

8 . Clean the body.
(a) Clean and modify the interface of the body.
• Remove the rough glass sealent on the
interface with a knife.
• Clean the interface with cloth
82
containing in cleaner.

NOTICE

Be careful not to damage the body. Clean the
body even if all glass sealant is removed.

(b) Clean the part to apply windscreen primer.
(c) Apply a thin layer of primer on the exterior
windscreen.
• Don't touch the surface with your hands
after the primer application, or the parts
without primer may lead to leakage.
• Don't apply body primer on the
windscreen.
• Prevent the application surface from
water, dust or impurities.

Page 2520
