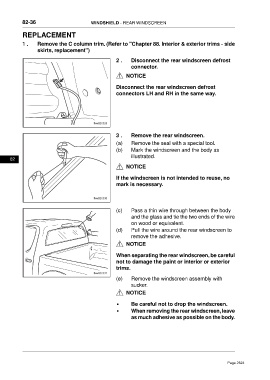

82-36 WINDSHIELD - REAR WINDSCREEN

REPLACEMENT

1 . Remove the C column trim. (Refer to "Chapter 88. Interior & exterior trims - side
skirts, replacement")
2 . Disconnect the rear windscreen defrost
connector.

NOTICE

Disconnect the rear windscreen defrost
connectors LH and RH in the same way.

3 . Remove the rear windscreen.
(a) Remove the seal with a special tool.
(b) Mark the windscreen and the body as
illustrated.
82
NOTICE

If the windscreen is not intended to reuse, no
mark is necessary.

(c) Pass a thin wire through between the body
and the glass and tie the two ends of the wire
on wood or equivalent.
(d) Pull the wire around the rear windscreen to
remove the adhesive.
NOTICE

When separating the rear windscreen, be careful
not to damage the paint or interior or exterior
trims.

(e) Remove the windscreen assembly with
sucker.
NOTICE

• Be careful not to drop the windscreen.
• When removing the rear windscreen, leave
as much adhesive as possible on the body.
