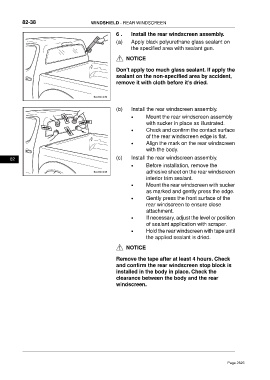

82-38 WINDSHIELD - REAR WINDSCREEN

6 . Install the rear windscreen assembly.
(a) Apply black polyurethane glass sealant on
the specified area with sealant gun.

NOTICE

Don't apply too much glass sealant. If apply the
sealant on the non-specified area by accident,
remove it with cloth before it's dried.

(b) Install the rear windscreen assembly.
• Mount the rear windscreen assembly
with sucker in place as illustrated.
• Check and confirm the contact surface
of the rear windscreen edge is flat.
• Align the mark on the rear windscreen
with the body.
82 (c) Install the rear windscreen assembly.
• Before installation, remove the
adhesive sheet on the rear windscreen
interior trim sealant.
• Mount the rear windscreen with sucker
as marked and gently press the edge.
• Gently press the front surface of the
rear windscreen to ensure close
attachment.
• If necessary, adjust the level or position
of sealant application with scraper.
• Hold the rear windscreen with tape until
the applied sealant is dried.

NOTICE

Remove the tape after at least 4 hours. Check
and confirm the rear windscreen stop block is
installed in the body in place. Check the
clearance between the body and the rear
windscreen.
