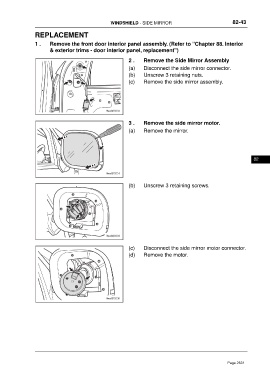

WINDSHIELD - SIDE MIRROR 82-43
REPLACEMENT
1 . Remove the front door interior panel assembly. (Refer to "Chapter 88. Interior
& exterior trims - door interior panel, replacement")
2 . Remove the Side Mirror Assembly
(a) Disconnect the side mirror connector.
(b) Unscrew 3 retaining nuts.
(c) Remove the side mirror assembly.
3 . Remove the side mirror motor.
(a) Remove the mirror.
82
(b) Unscrew 3 retaining screws.
(c) Disconnect the side mirror motor connector.
(d) Remove the motor.
