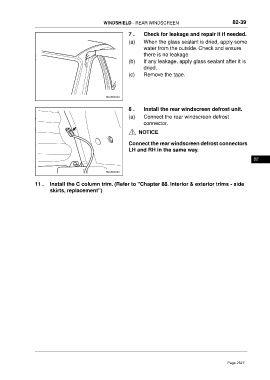

Page 2527 - Foton Workshop Manual - Tunland (AT)
P. 2527
WINDSHIELD - REAR WINDSCREEN 82-39
7 . Check for leakage and repair it if needed.
(a) When the glass sealant is dried, apply some
water from the outside. Check and ensure
there is no leakage.
(b) If any leakage, apply glass sealant after it is
dried.
(c) Remove the tape.
8 . Install the rear windscreen defrost unit.
(a) Connect the rear windscreen defrost
connector.
NOTICE
Connect the rear windscreen defrost connectors
LH and RH in the same way.
82
11 . Install the C column trim. (Refer to "Chapter 88. Interior & exterior trims - side
skirts, replacement")
Page 2527
