Page 2529 - Foton Workshop Manual - Tunland (AT)
P. 2529

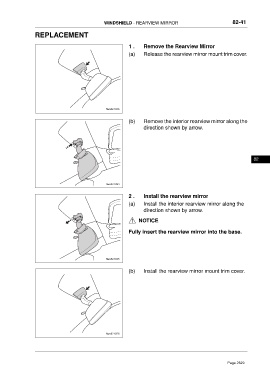

WINDSHIELD - REARVIEW MIRROR 82-41
REPLACEMENT
1 . Remove the Rearview Mirror
(a) Release the rearview mirror mount trim cover.
ftwx821026
(b) Remove the interior rearview mirror along the
direction shown by arrow.
82
ftwx821024
2 . Install the rearview mirror
(a) Install the interior rearview mirror along the
direction shown by arrow.
NOTICE
Fully insert the rearview mirror into the base.
ftwx821025
(b) Install the rearview mirror mount trim cover.
ftwx821026
Page 2529
