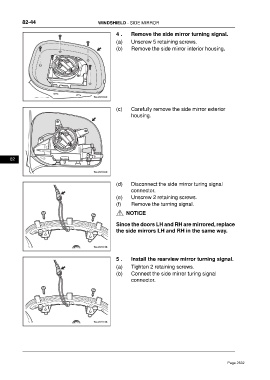

82-44 WINDSHIELD - SIDE MIRROR
4 . Remove the side mirror turning signal.
(a) Unscrew 5 retaining screws.
(b) Remove the side mirror interior housing.
(c) Carefully remove the side mirror exterior
housing.
82
(d) Disconnect the side mirror turing signal
connector.
(e) Unscrew 2 retaining screws.
(f) Remove the turning signal.
NOTICE
Since the doors LH and RH are mirrored, replace
the side mirrors LH and RH in the same way.
5 . Install the rearview mirror turning signal.
(a) Tighten 2 retaining screws.
(b) Connect the side mirror turing signal
connector.
