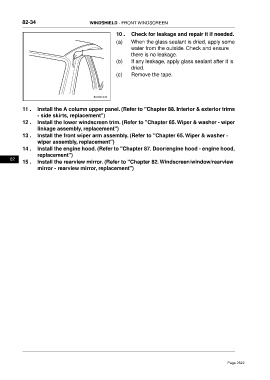

82-34 WINDSHIELD - FRONT WINDSCREEN

10 . Check for leakage and repair it if needed.
(a) When the glass sealant is dried, apply some
water from the outside. Check and ensure
there is no leakage.
(b) If any leakage, apply glass sealant after it is
dried.
(c) Remove the tape.

11 . Install the A column upper panel. (Refer to "Chapter 88. Interior & exterior trims
- side skirts, replacement")
12 . Install the lower windscreen trim. (Refer to "Chapter 65.Wiper & washer - wiper
linkage assembly, replacement")
13 . Install the front wiper arm assembly. (Refer to "Chapter 65. Wiper & washer -
wiper assembly, replacement")
14 . Install the engine hood. (Refer to "Chapter 87. Door/engine hood - engine hood,
replacement")
82
15 . Install the rearview mirror. (Refer to "Chapter 82. Windscreen/window/rearview
mirror - rearview mirror, replacement")
