Aircraft general knowledge
Now the engine gets a shape that is suitable for a streamlined aircraft.
As can be seen, there is symmetry over the centerline, and this is necessary for
a smooth and balanced engine
operation.
2 pistons in the top position and the
other 2 in the bottom position.
You can see the system at the link here:
8.8.2.2 Structure of the engine

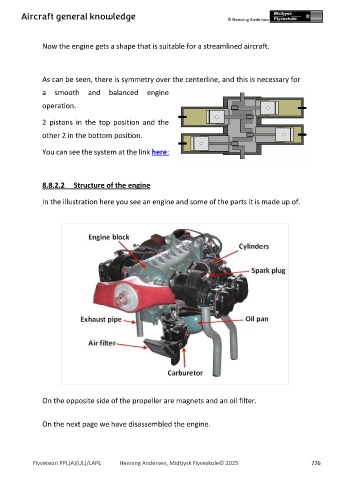

In the illustration here you see an engine and some of the parts it is made up of.
On the opposite side of the propeller are magnets and an oil filter.
On the next page we have disassembled the engine.
