Aircraft general knowledge

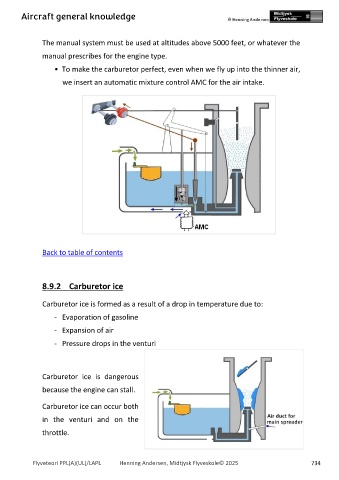

                The manual system must be used at altitudes above 5000 feet, or whatever the

                manual prescribes for the engine type.
                    •  To make the carburetor perfect, even when we fly up into the thinner air,

                       we insert an automatic mixture control AMC for the air intake.























                Back to table of contents




                8.9.2    Carburetor ice


                Carburetor ice is formed as a result of a drop in temperature due to:

                    -   Evaporation of gasoline

                    -   Expansion of air
                    -   Pressure drops in the venturi





                Carburetor  ice  is  dangerous

                because the engine can stall.

                Carburetor ice can occur both

                in  the  venturi  and  on  the

                throttle.




             Flyveteori PPL(A)(UL)/LAPL             Henning Andersen, Midtjysk Flyveskole© 2025               734
