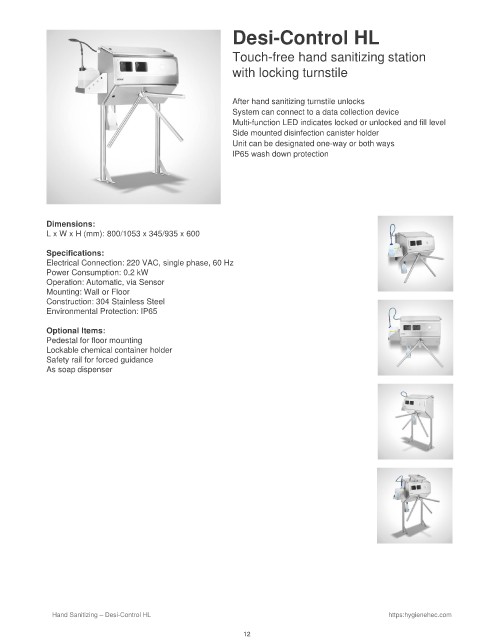

Desi-Control HL

Touch-free hand sanitizing station
with locking turnstile

After hand sanitizing turnstile unlocks
System can connect to a data collection device
Multi-function LED indicates locked or unlocked and fill level
Side mounted disinfection canister holder
Unit can be designated one-way or both ways
IP65 wash down protection

Dimensions:
L x W x H (mm): 800/1053 x 345/935 x 600

Specifications:
Electrical Connection: 220 VAC, single phase, 60 Hz
Power Consumption: 0.2 kW
Operation: Automatic, via Sensor
Mounting: Wall or Floor
Construction: 304 Stainless Steel
Environmental Protection: IP65

Optional Items:
Pedestal for floor mounting
Lockable chemical container holder
Safety rail for forced guidance
As soap dispenser

Hand Sanitizing – Desi-Control HL https:hygienehec.com
