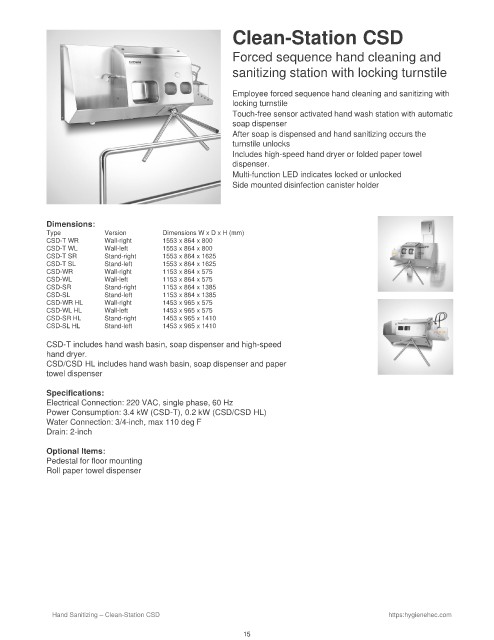

Clean-Station CSD

Forced sequence hand cleaning and
sanitizing station with locking turnstile

Employee forced sequence hand cleaning and sanitizing with
locking turnstile
Touch-free sensor activated hand wash station with automatic
soap dispenser
After soap is dispensed and hand sanitizing occurs the
turnstile unlocks
Includes high-speed hand dryer or folded paper towel
dispenser.
Multi-function LED indicates locked or unlocked
Side mounted disinfection canister holder

Dimensions:
Type Version Dimensions W x D x H (mm)
CSD-T WR Wall-right 1553 x 864 x 800
CSD-T WL Wall-left 1553 x 864 x 800
CSD-T SR Stand-right 1553 x 864 x 1625
CSD-T SL Stand-left 1553 x 864 x 1625
CSD-WR Wall-right 1153 x 864 x 575
CSD-WL Wall-left 1153 x 864 x 575
CSD-SR Stand-right 1153 x 864 x 1385
CSD-SL Stand-left 1153 x 864 x 1385
CSD-WR HL Wall-right 1453 x 965 x 575
CSD-WL HL Wall-left 1453 x 965 x 575
CSD-SR HL Stand-right 1453 x 965 x 1410
CSD-SL HL Stand-left 1453 x 965 x 1410

CSD-T includes hand wash basin, soap dispenser and high-speed
hand dryer.
CSD/CSD HL includes hand wash basin, soap dispenser and paper
towel dispenser

Specifications:
Electrical Connection: 220 VAC, single phase, 60 Hz
Power Consumption: 3.4 kW (CSD-T), 0.2 kW (CSD/CSD HL)
Water Connection: 3/4-inch, max 110 deg F
Drain: 2-inch

Optional Items:
Pedestal for floor mounting
Roll paper towel dispenser
