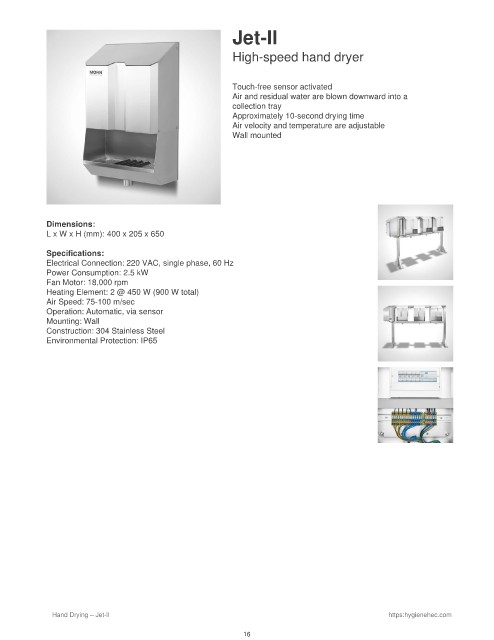

Jet-II
High-speed hand dryer
Touch-free sensor activated
Air and residual water are blown downward into a
collection tray
Approximately 10-second drying time
Air velocity and temperature are adjustable
Wall mounted
Dimensions:
L x W x H (mm): 400 x 205 x 650
Specifications:
Electrical Connection: 220 VAC, single phase, 60 Hz
Power Consumption: 2.5 kW
Fan Motor: 18,000 rpm
Heating Element: 2 @ 450 W (900 W total)
Air Speed: 75-100 m/sec
Operation: Automatic, via sensor
Mounting: Wall
Construction: 304 Stainless Steel
Environmental Protection: IP65
