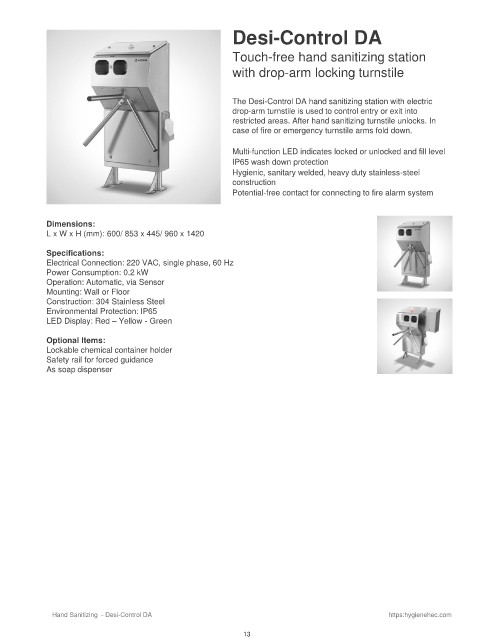

Desi-Control DA

Touch-free hand sanitizing station
with drop-arm locking turnstile

The Desi-Control DA hand sanitizing station with electric
drop-arm turnstile is used to control entry or exit into
restricted areas. After hand sanitizing turnstile unlocks. In
case of fire or emergency turnstile arms fold down.

Multi-function LED indicates locked or unlocked and fill level
IP65 wash down protection
Hygienic, sanitary welded, heavy duty stainless-steel
construction
Potential-free contact for connecting to fire alarm system

Dimensions:
L x W x H (mm): 600/ 853 x 445/ 960 x 1420

Specifications:
Electrical Connection: 220 VAC, single phase, 60 Hz
Power Consumption: 0.2 kW
Operation: Automatic, via Sensor
Mounting: Wall or Floor
Construction: 304 Stainless Steel
Environmental Protection: IP65
LED Display: Red – Yellow - Green

Optional Items:
Lockable chemical container holder
Safety rail for forced guidance
As soap dispenser
