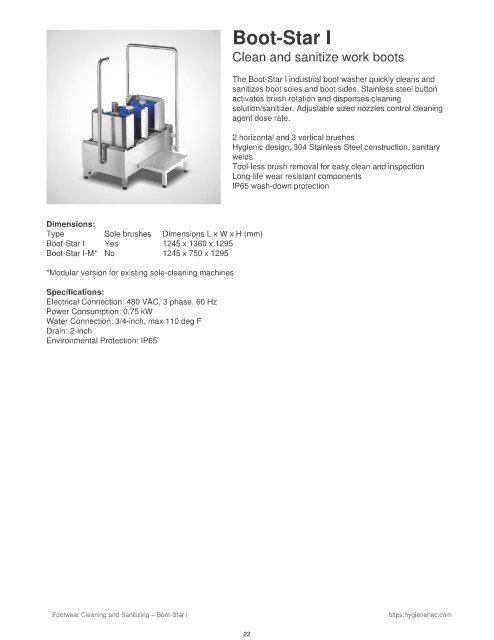

Boot-Star I

Clean and sanitize work boots

The Boot-Star I industrial boot washer quickly cleans and
sanitizes boot soles and boot sides. Stainless steel button
activates brush rotation and dispenses cleaning
solution/sanitizer. Adjustable sized nozzles control cleaning
agent dose rate.

2 horizontal and 3 vertical brushes
Hygienic design, 304 Stainless Steel construction, sanitary
welds
Tool-less brush removal for easy clean and inspection
Long-life wear resistant components
IP65 wash-down protection

Dimensions:
Type Sole brushes Dimensions L x W x H (mm)
Boot-Star I Yes 1245 x 1360 x 1295
Boot-Star I-M* No 1245 x 750 x 1295

*Modular version for existing sole-cleaning machines

Specifications:
Electrical Connection: 480 VAC, 3 phase, 60 Hz
Power Consumption: 0.75 kW
Water Connection: 3/4-inch, max 110 deg F
Drain: 2-inch
Environmental Protection: IP65
