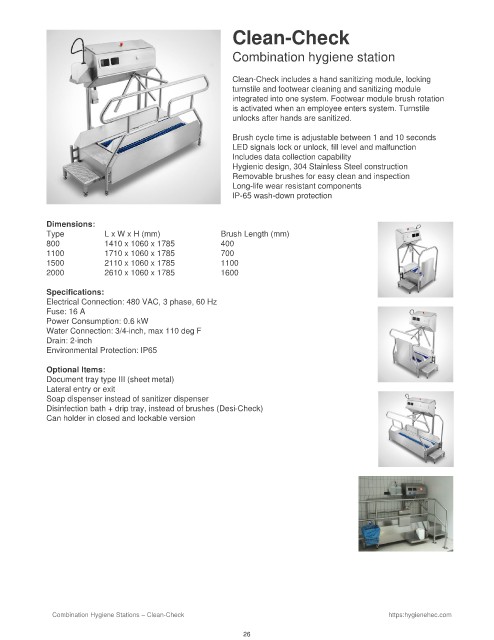

Clean-Check

Combination hygiene station

Clean-Check includes a hand sanitizing module, locking
turnstile and footwear cleaning and sanitizing module
integrated into one system. Footwear module brush rotation
is activated when an employee enters system. Turnstile
unlocks after hands are sanitized.

Brush cycle time is adjustable between 1 and 10 seconds
LED signals lock or unlock, fill level and malfunction
Includes data collection capability
Hygienic design, 304 Stainless Steel construction
Removable brushes for easy clean and inspection
Long-life wear resistant components
IP-65 wash-down protection

Dimensions:
Type L x W x H (mm) Brush Length (mm)
800 1410 x 1060 x 1785 400
1100 1710 x 1060 x 1785 700
1500 2110 x 1060 x 1785 1100
2000 2610 x 1060 x 1785 1600

Specifications:
Electrical Connection: 480 VAC, 3 phase, 60 Hz
Fuse: 16 A
Power Consumption: 0.6 kW
Water Connection: 3/4-inch, max 110 deg F
Drain: 2-inch
Environmental Protection: IP65

Optional Items:
Document tray type III (sheet metal)
Lateral entry or exit
Soap dispenser instead of sanitizer dispenser
Disinfection bath + drip tray, instead of brushes (Desi-Check)
Can holder in closed and lockable version

Combination Hygiene Stations – Clean-Check https:hygienehec.com

26
