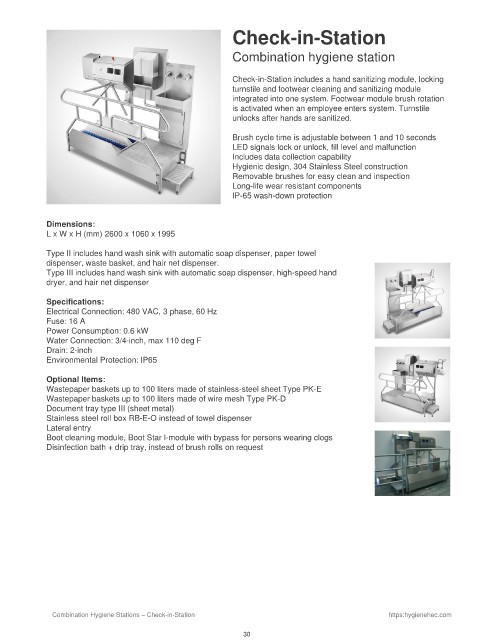

Check-in-Station

Combination hygiene station

Check-in-Station includes a hand sanitizing module, locking
turnstile and footwear cleaning and sanitizing module
integrated into one system. Footwear module brush rotation
is activated when an employee enters system. Turnstile
unlocks after hands are sanitized.

Brush cycle time is adjustable between 1 and 10 seconds
LED signals lock or unlock, fill level and malfunction
Includes data collection capability
Hygienic design, 304 Stainless Steel construction
Removable brushes for easy clean and inspection
Long-life wear resistant components
IP-65 wash-down protection

Dimensions:
L x W x H (mm) 2600 x 1060 x 1995

Type II includes hand wash sink with automatic soap dispenser, paper towel
dispenser, waste basket, and hair net dispenser.
Type III includes hand wash sink with automatic soap dispenser, high-speed hand
dryer, and hair net dispenser

Specifications:
Electrical Connection: 480 VAC, 3 phase, 60 Hz
Fuse: 16 A
Power Consumption: 0.6 kW
Water Connection: 3/4-inch, max 110 deg F
Drain: 2-inch
Environmental Protection: IP65

Optional Items:
Wastepaper baskets up to 100 liters made of stainless-steel sheet Type PK-E
Wastepaper baskets up to 100 liters made of wire mesh Type PK-D
Document tray type III (sheet metal)
Stainless steel roll box RB-E-O instead of towel dispenser
Lateral entry
Boot cleaning module, Boot Star I-module with bypass for persons wearing clogs
Disinfection bath + drip tray, instead of brush rolls on request
