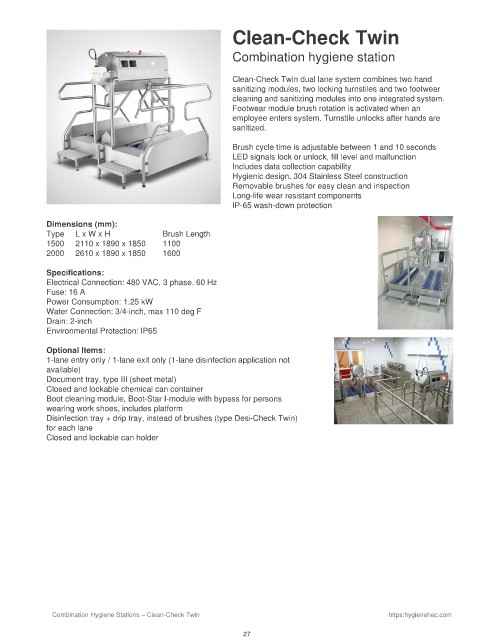

Clean-Check Twin

Combination hygiene station

Clean-Check Twin dual lane system combines two hand
sanitizing modules, two locking turnstiles and two footwear
cleaning and sanitizing modules into one integrated system.
Footwear module brush rotation is activated when an
employee enters system. Turnstile unlocks after hands are
sanitized.

Brush cycle time is adjustable between 1 and 10 seconds
LED signals lock or unlock, fill level and malfunction
Includes data collection capability
Hygienic design, 304 Stainless Steel construction
Removable brushes for easy clean and inspection
Long-life wear resistant components
IP-65 wash-down protection

Dimensions (mm):
Type L x W x H Brush Length
1500 2110 x 1890 x 1850 1100
2000 2610 x 1890 x 1850 1600

Specifications:
Electrical Connection: 480 VAC, 3 phase, 60 Hz
Fuse: 16 A
Power Consumption: 1.25 kW
Water Connection: 3/4-inch, max 110 deg F
Drain: 2-inch
Environmental Protection: IP65

Optional Items:
1-lane entry only / 1-lane exit only (1-lane disinfection application not
available)
Document tray, type III (sheet metal)
Closed and lockable chemical can container
Boot cleaning module, Boot-Star I-module with bypass for persons
wearing work shoes, includes platform
Disinfection tray + drip tray, instead of brushes (type Desi-Check Twin)
for each lane
Closed and lockable can holder
