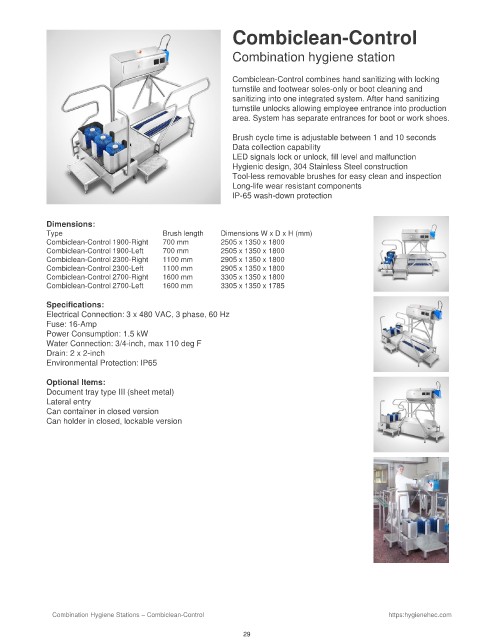

Page 1519 - Flipbook_SolidDesignSoutheast2020
P. 1519
Combiclean-Control
Combination hygiene station
Combiclean-Control combines hand sanitizing with locking
turnstile and footwear soles-only or boot cleaning and
sanitizing into one integrated system. After hand sanitizing
turnstile unlocks allowing employee entrance into production
area. System has separate entrances for boot or work shoes.
Brush cycle time is adjustable between 1 and 10 seconds
Data collection capability
LED signals lock or unlock, fill level and malfunction
Hygienic design, 304 Stainless Steel construction
Tool-less removable brushes for easy clean and inspection
Long-life wear resistant components
IP-65 wash-down protection
Dimensions:
Type Brush length Dimensions W x D x H (mm)
Combiclean-Control 1900-Right 700 mm 2505 x 1350 x 1800
Combiclean-Control 1900-Left 700 mm 2505 x 1350 x 1800
Combiclean-Control 2300-Right 1100 mm 2905 x 1350 x 1800
Combiclean-Control 2300-Left 1100 mm 2905 x 1350 x 1800
Combiclean-Control 2700-Right 1600 mm 3305 x 1350 x 1800
Combiclean-Control 2700-Left 1600 mm 3305 x 1350 x 1785
Specifications:
Electrical Connection: 3 x 480 VAC, 3 phase, 60 Hz
Fuse: 16-Amp
Power Consumption: 1.5 kW
Water Connection: 3/4-inch, max 110 deg F
Drain: 2 x 2-inch
Environmental Protection: IP65
Optional Items:
Document tray type III (sheet metal)
Lateral entry
Can container in closed version
Can holder in closed, lockable version
