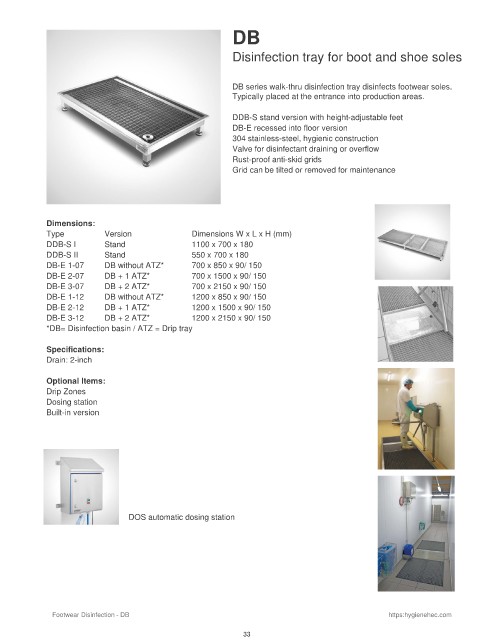

DB

Disinfection tray for boot and shoe soles

DB series walk-thru disinfection tray disinfects footwear soles.
Typically placed at the entrance into production areas.

DDB-S stand version with height-adjustable feet
DB-E recessed into floor version
304 stainless-steel, hygienic construction
Valve for disinfectant draining or overflow
Rust-proof anti-skid grids
Grid can be tilted or removed for maintenance

Dimensions:
Type Version Dimensions W x L x H (mm)
DDB-S I Stand 1100 x 700 x 180
DDB-S II Stand 550 x 700 x 180
DB-E 1-07 DB without ATZ* 700 x 850 x 90/ 150
DB-E 2-07 DB + 1 ATZ* 700 x 1500 x 90/ 150
DB-E 3-07 DB + 2 ATZ* 700 x 2150 x 90/ 150
DB-E 1-12 DB without ATZ* 1200 x 850 x 90/ 150
DB-E 2-12 DB + 1 ATZ* 1200 x 1500 x 90/ 150
DB-E 3-12 DB + 2 ATZ* 1200 x 2150 x 90/ 150
*DB= Disinfection basin / ATZ = Drip tray

Specifications:
Drain: 2-inch

Optional Items:
Drip Zones
Dosing station
Built-in version

DOS automatic dosing station
