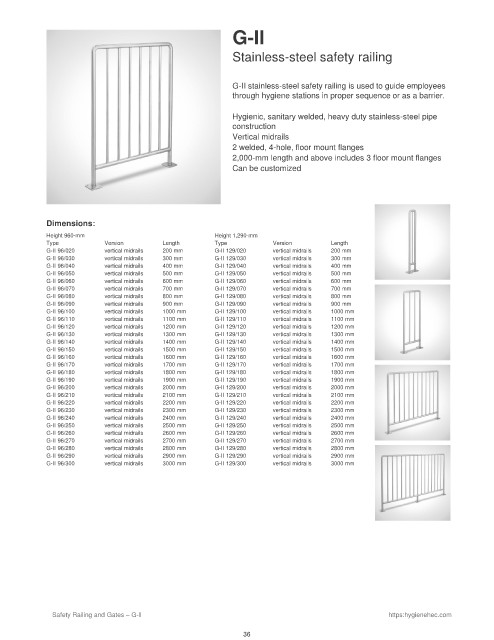

G-II

Stainless-steel safety railing

G-II stainless-steel safety railing is used to guide employees
through hygiene stations in proper sequence or as a barrier.

Hygienic, sanitary welded, heavy duty stainless-steel pipe
construction
Vertical midrails
2 welded, 4-hole, floor mount flanges
2,000-mm length and above includes 3 floor mount flanges
Can be customized

Dimensions:
Height 960-mm Height 1,290-mm
Type Version Length Type Version Length
G-II 96/020 vertical midrails 200 mm G-II 129/020 vertical midrails 200 mm
G-II 96/030 vertical midrails 300 mm G-II 129/030 vertical midrails 300 mm
G-II 96/040 vertical midrails 400 mm G-II 129/040 vertical midrails 400 mm
G-II 96/050 vertical midrails 500 mm G-II 129/050 vertical midrails 500 mm
G-II 96/060 vertical midrails 600 mm G-II 129/060 vertical midrails 600 mm
G-II 96/070 vertical midrails 700 mm G-II 129/070 vertical midrails 700 mm
G-II 96/080 vertical midrails 800 mm G-II 129/080 vertical midrails 800 mm
G-II 96/090 vertical midrails 900 mm G-II 129/090 vertical midrails 900 mm
G-II 96/100 vertical midrails 1000 mm G-II 129/100 vertical midrails 1000 mm
G-II 96/110 vertical midrails 1100 mm G-II 129/110 vertical midrails 1100 mm
G-II 96/120 vertical midrails 1200 mm G-II 129/120 vertical midrails 1200 mm
G-II 96/130 vertical midrails 1300 mm G-II 129/130 vertical midrails 1300 mm
G-II 96/140 vertical midrails 1400 mm G-II 129/140 vertical midrails 1400 mm
G-II 96/150 vertical midrails 1500 mm G-II 129/150 vertical midrails 1500 mm
G-II 96/160 vertical midrails 1600 mm G-II 129/160 vertical midrails 1600 mm
G-II 96/170 vertical midrails 1700 mm G-II 129/170 vertical midrails 1700 mm
G-II 96/180 vertical midrails 1800 mm G-II 129/180 vertical midrails 1800 mm
G-II 96/190 vertical midrails 1900 mm G-II 129/190 vertical midrails 1900 mm
G-II 96/200 vertical midrails 2000 mm G-II 129/200 vertical midrails 2000 mm
G-II 96/210 vertical midrails 2100 mm G-II 129/210 vertical midrails 2100 mm
G-II 96/220 vertical midrails 2200 mm G-II 129/220 vertical midrails 2200 mm
G-II 96/230 vertical midrails 2300 mm G-II 129/230 vertical midrails 2300 mm
G-II 96/240 vertical midrails 2400 mm G-II 129/240 vertical midrails 2400 mm
G-II 96/250 vertical midrails 2500 mm G-II 129/250 vertical midrails 2500 mm
G-II 96/260 vertical midrails 2600 mm G-II 129/260 vertical midrails 2600 mm
G-II 96/270 vertical midrails 2700 mm G-II 129/270 vertical midrails 2700 mm
G-II 96/280 vertical midrails 2800 mm G-II 129/280 vertical midrails 2800 mm
G-II 96/290 vertical midrails 2900 mm G-II 129/290 vertical midrails 2900 mm
G-II 96/300 vertical midrails 3000 mm G-II 129/300 vertical midrails 3000 mm
