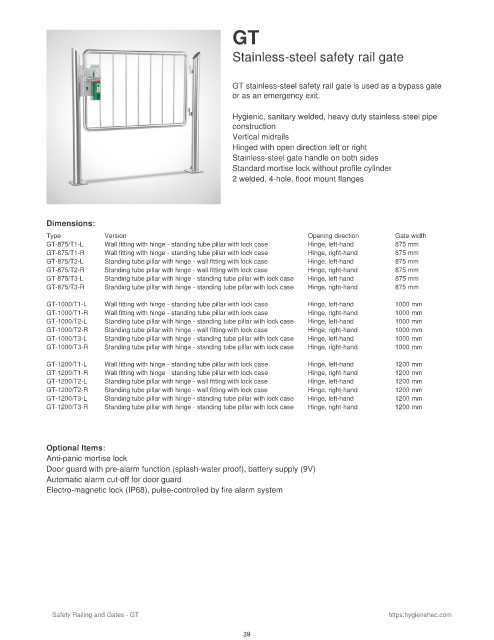

Page 1529 - Flipbook_SolidDesignSoutheast2020

GT

Stainless-steel safety rail gate

GT stainless-steel safety rail gate is used as a bypass gate
or as an emergency exit.

Hygienic, sanitary welded, heavy duty stainless-steel pipe
construction
Vertical midrails
Hinged with open direction left or right
Stainless-steel gate handle on both sides
Standard mortise lock without profile cylinder
2 welded, 4-hole, floor mount flanges

Dimensions:
Type Version Opening direction Gate width
GT-875/T1-L Wall fitting with hinge - standing tube pillar with lock case Hinge, left-hand 875 mm
GT-875/T1-R Wall fitting with hinge - standing tube pillar with lock case Hinge, right-hand 875 mm
GT-875/T2-L Standing tube pillar with hinge - wall fitting with lock case Hinge, left-hand 875 mm
GT-875/T2-R Standing tube pillar with hinge - wall fitting with lock case Hinge, right-hand 875 mm
GT-875/T3-L Standing tube pillar with hinge - standing tube pillar with lock case Hinge, left-hand 875 mm
GT-875/T3-R Standing tube pillar with hinge - standing tube pillar with lock case Hinge, right-hand 875 mm

GT-1000/T1-L Wall fitting with hinge - standing tube pillar with lock case Hinge, left-hand 1000 mm
GT-1000/T1-R Wall fitting with hinge - standing tube pillar with lock case Hinge, right-hand 1000 mm
GT-1000/T2-L Standing tube pillar with hinge - standing tube pillar with lock case Hinge, left-hand 1000 mm
GT-1000/T2-R Standing tube pillar with hinge - wall fitting with lock case Hinge, right-hand 1000 mm
GT-1000/T3-L Standing tube pillar with hinge - standing tube pillar with lock case Hinge, left-hand 1000 mm
GT-1000/T3-R Standing tube pillar with hinge - standing tube pillar with lock case Hinge, right-hand 1000 mm

GT-1200/T1-L Wall fitting with hinge - standing tube pillar with lock case Hinge, left-hand 1200 mm
GT-1200/T1-R Wall fitting with hinge - standing tube pillar with lock case Hinge, right-hand 1200 mm
GT-1200/T2-L Standing tube pillar with hinge - wall fitting with lock case Hinge, left-hand 1200 mm
GT-1200/T2-R Standing tube pillar with hinge - wall fitting with lock case Hinge, right-hand 1200 mm
GT-1200/T3-L Standing tube pillar with hinge - standing tube pillar with lock case Hinge, left-hand 1200 mm
GT-1200/T3-R Standing tube pillar with hinge - standing tube pillar with lock case Hinge, right-hand 1200 mm

Optional Items:
Anti-panic mortise lock
Door guard with pre-alarm function (splash-water proof), battery supply (9V)
Automatic alarm cut-off for door guard
Electro-magnetic lock (IP68), pulse-controlled by fire alarm system

Safety Railing and Gates - GT https:hygienehec.com
