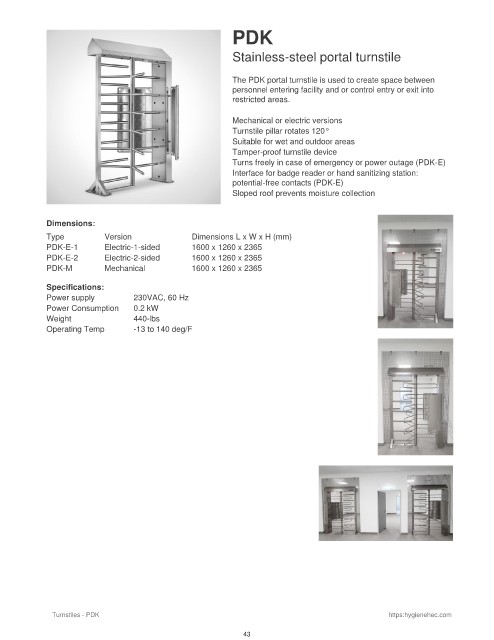

Page 1533 - Flipbook_SolidDesignSoutheast2020

PDK

Stainless-steel portal turnstile

The PDK portal turnstile is used to create space between
personnel entering facility and or control entry or exit into
restricted areas.

Mechanical or electric versions
Turnstile pillar rotates 120°
Suitable for wet and outdoor areas
Tamper-proof turnstile device
Turns freely in case of emergency or power outage (PDK-E)
Interface for badge reader or hand sanitizing station:
potential-free contacts (PDK-E)
Sloped roof prevents moisture collection

Dimensions:
Type Version Dimensions L x W x H (mm)
PDK-E-1 Electric-1-sided 1600 x 1260 x 2365
PDK-E-2 Electric-2-sided 1600 x 1260 x 2365
PDK-M Mechanical 1600 x 1260 x 2365

Specifications:
Power supply 230VAC, 60 Hz
Power Consumption 0.2 kW
Weight 440-lbs
Operating Temp -13 to 140 deg/F

Turnstiles - PDK https:hygienehec.com

43
