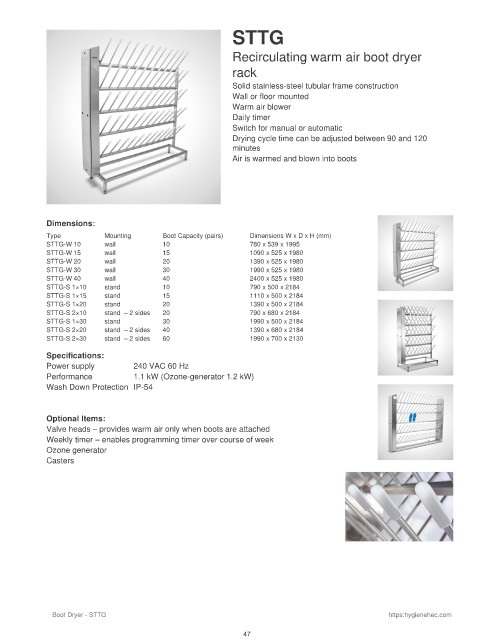

Page 1537 - Flipbook_SolidDesignSoutheast2020

STTG

Recirculating warm air boot dryer
rack

Solid stainless-steel tubular frame construction
Wall or floor mounted
Warm air blower
Daily timer
Switch for manual or automatic
Drying cycle time can be adjusted between 90 and 120
minutes
Air is warmed and blown into boots

Dimensions:
Type Mounting Boot Capacity (pairs) Dimensions W x D x H (mm)
STTG-W 10 wall 10 780 x 539 x 1995
STTG-W 15 wall 15 1090 x 525 x 1980
STTG-W 20 wall 20 1390 x 525 x 1980
STTG-W 30 wall 30 1990 x 525 x 1980
STTG-W 40 wall 40 2400 x 525 x 1980
STTG-S 1×10 stand 10 790 x 500 x 2184
STTG-S 1×15 stand 15 1110 x 500 x 2184
STTG-S 1×20 stand 20 1390 x 500 x 2184
STTG-S 2×10 stand – 2 sides 20 790 x 680 x 2184
STTG-S 1×30 stand 30 1990 x 500 x 2184
STTG-S 2×20 stand – 2 sides 40 1390 x 680 x 2184
STTG-S 2×30 stand – 2 sides 60 1990 x 700 x 2130
Specifications:
Power supply 240 VAC 60 Hz
Performance 1.1 kW (Ozone-generator 1.2 kW)
Wash Down Protection IP-54

Optional Items:
Valve heads – provides warm air only when boots are attached
Weekly timer – enables programming timer over course of week
Ozone generator
Casters

Boot Dryer - STTG https:hygienehec.com

47
