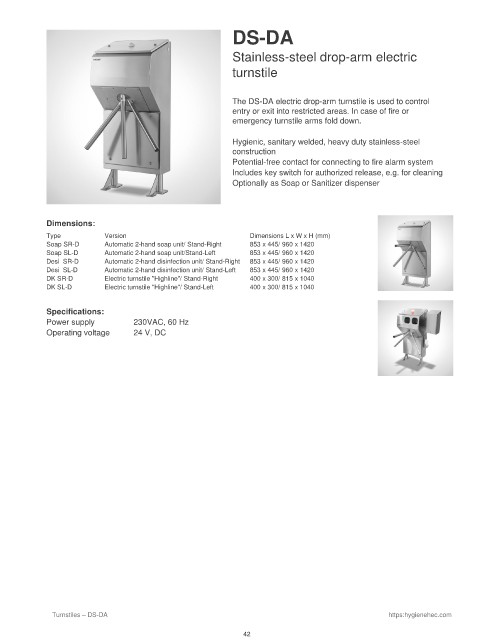

DS-DA

Stainless-steel drop-arm electric
turnstile

The DS-DA electric drop-arm turnstile is used to control
entry or exit into restricted areas. In case of fire or
emergency turnstile arms fold down.

Hygienic, sanitary welded, heavy duty stainless-steel
construction
Potential-free contact for connecting to fire alarm system
Includes key switch for authorized release, e.g. for cleaning
Optionally as Soap or Sanitizer dispenser

Dimensions:
Type Version Dimensions L x W x H (mm)
Soap SR-D Automatic 2-hand soap unit/ Stand-Right 853 x 445/ 960 x 1420
Soap SL-D Automatic 2-hand soap unit/Stand-Left 853 x 445/ 960 x 1420
Desi SR-D Automatic 2-hand disinfection unit/ Stand-Right 853 x 445/ 960 x 1420
Desi SL-D Automatic 2-hand disinfection unit/ Stand-Left 853 x 445/ 960 x 1420
DK SR-D Electric turnstile "Highline"/ Stand-Right 400 x 300/ 815 x 1040
DK SL-D Electric turnstile "Highline"/ Stand-Left 400 x 300/ 815 x 1040

Specifications:
Power supply 230VAC, 60 Hz
Operating voltage 24 V, DC

Turnstiles – DS-DA https:hygienehec.com

42
