DGS

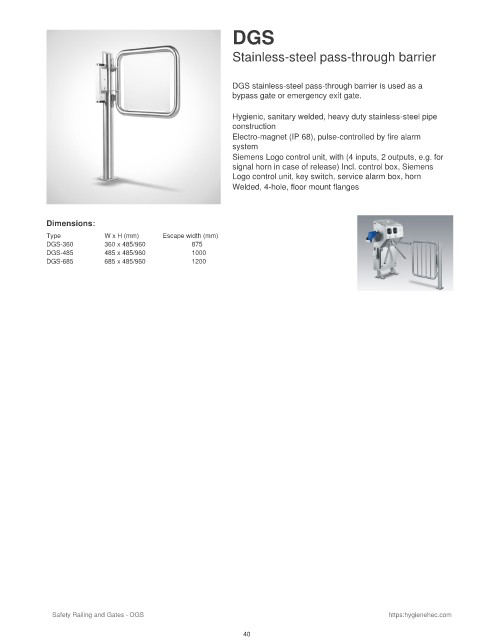

Stainless-steel pass-through barrier

DGS stainless-steel pass-through barrier is used as a
bypass gate or emergency exit gate.

Hygienic, sanitary welded, heavy duty stainless-steel pipe
construction
Electro-magnet (IP 68), pulse-controlled by fire alarm
system
Siemens Logo control unit, with (4 inputs, 2 outputs, e.g. for
signal horn in case of release) Incl. control box, Siemens
Logo control unit, key switch, service alarm box, horn
Welded, 4-hole, floor mount flanges

Dimensions:
Type W x H (mm) Escape width (mm)
DGS-360 360 x 485/960 875
DGS-485 485 x 485/960 1000
DGS-685 685 x 485/960 1200
