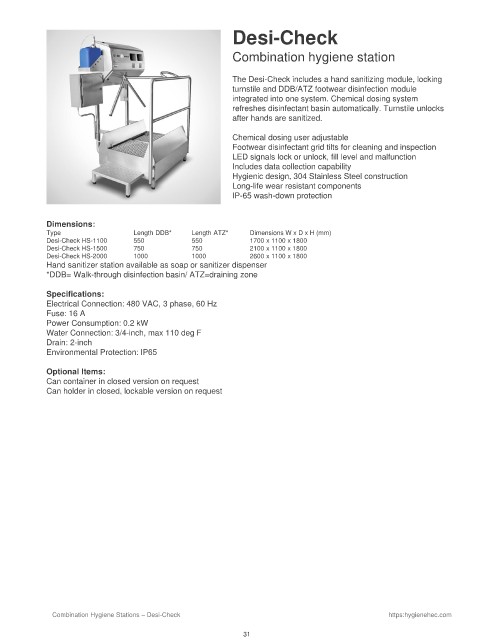

Page 1521 - Flipbook_SolidDesignSoutheast2020

Desi-Check

Combination hygiene station

The Desi-Check includes a hand sanitizing module, locking
turnstile and DDB/ATZ footwear disinfection module
integrated into one system. Chemical dosing system
refreshes disinfectant basin automatically. Turnstile unlocks
after hands are sanitized.

Chemical dosing user adjustable
Footwear disinfectant grid tilts for cleaning and inspection
LED signals lock or unlock, fill level and malfunction
Includes data collection capability
Hygienic design, 304 Stainless Steel construction
Long-life wear resistant components
IP-65 wash-down protection

Dimensions:
Type Length DDB* Length ATZ* Dimensions W x D x H (mm)
Desi-Check HS-1100 550 550 1700 x 1100 x 1800
Desi-Check HS-1500 750 750 2100 x 1100 x 1800
Desi-Check HS-2000 1000 1000 2600 x 1100 x 1800
Hand sanitizer station available as soap or sanitizer dispenser
*DDB= Walk-through disinfection basin/ ATZ=draining zone

Specifications:
Electrical Connection: 480 VAC, 3 phase, 60 Hz
Fuse: 16 A
Power Consumption: 0.2 kW
Water Connection: 3/4-inch, max 110 deg F
Drain: 2-inch
Environmental Protection: IP65

Optional Items:
Can container in closed version on request
Can holder in closed, lockable version on request

Combination Hygiene Stations – Desi-Check https:hygienehec.com

31
