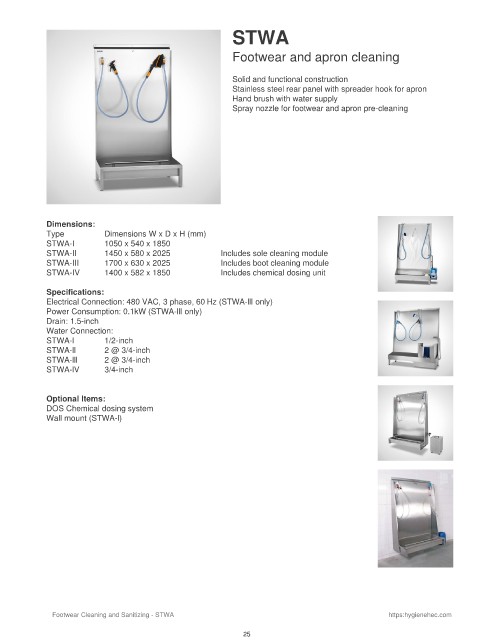

STWA

Footwear and apron cleaning

Solid and functional construction
Stainless steel rear panel with spreader hook for apron
Hand brush with water supply
Spray nozzle for footwear and apron pre-cleaning

Dimensions:
Type Dimensions W x D x H (mm)
STWA-I 1050 x 540 x 1850
STWA-II 1450 x 580 x 2025 Includes sole cleaning module
STWA-III 1700 x 630 x 2025 Includes boot cleaning module
STWA-IV 1400 x 582 x 1850 Includes chemical dosing unit

Specifications:
Electrical Connection: 480 VAC, 3 phase, 60 Hz (STWA-lll only)
Power Consumption: 0.1kW (STWA-lll only)
Drain: 1.5-inch
Water Connection:
STWA-l 1/2-inch
STWA-ll 2 @ 3/4-inch
STWA-lll 2 @ 3/4-inch
STWA-lV 3/4-inch

Optional Items:
DOS Chemical dosing system
Wall mount (STWA-l)

Footwear Cleaning and Sanitizing - STWA https:hygienehec.com

25
