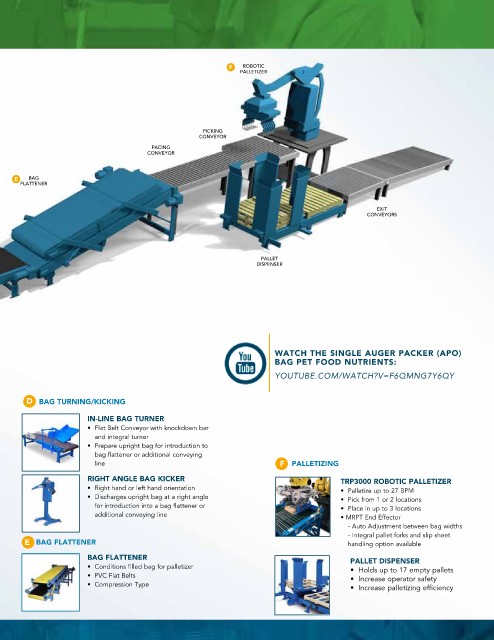

packaging automation systems

F ROBOTIC
PALLETIZER

PICKING
CONVEYOR
PACING
CONVEYOR

E BAG
FLATTENER

EXIT
CONVEYORS

PALLET
DISPENSER

WATCH THE SINGLE AUGER PACKER (APO)
BAG PET FOOD NUTRIENTS:
YOUTUBE.COM/WATCH?V=F6QMNG7Y6QY

D BAG TURNING/KICKING
IN-LINE BAG TURNER
• Flat Belt Conveyor with knockdown bar
and integral turner
• Prepare upright bag for introduction to
bag flattener or additional conveying
line F PALLETIZING

RIGHT ANGLE BAG KICKER TRP3000 ROBOTIC PALLETIZER
• Right hand or left hand orientation • Palletize up to 27 BPM
• Discharges upright bag at a right angle • Pick from 1 or 2 locations
for introduction into a bag flattener or • Place in up to 3 locations
additional conveying line • MRPT End Effector
- Auto Adjustment between bag widths
- Integral pallet forks and slip sheet
E BAG FLATTENER handling option available

BAG FLATTENER PALLET DISPENSER
• Conditions filled bag for palletizer • Holds up to 17 empty pallets
• PVC Flat Belts • Increase operator safety
• Compression Type • Increase palletizing efficiency
