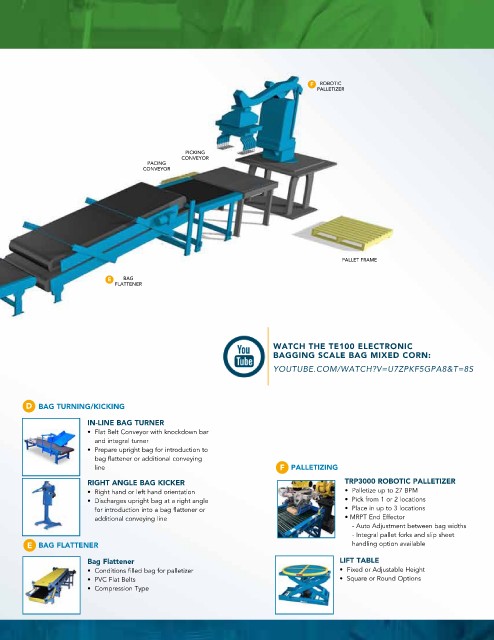

packaging automation systems

F ROBOTIC
PALLETIZER

PICKING
CONVEYOR
PACING
CONVEYOR

PALLET FRAME

E BAG
FLATTENER

WATCH THE TE100 ELECTRONIC
BAGGING SCALE BAG MIXED CORN:
YOUTUBE.COM/WATCH?V=U7ZPKF5GPA8&T=8S

D BAG TURNING/KICKING

IN-LINE BAG TURNER
• Flat Belt Conveyor with knockdown bar
and integral turner
• Prepare upright bag for introduction to
bag flattener or additional conveying
line F PALLETIZING
RIGHT ANGLE BAG KICKER TRP3000 ROBOTIC PALLETIZER
• Right hand or left hand orientation • Palletize up to 27 BPM
• Discharges upright bag at a right angle • Pick from 1 or 2 locations
for introduction into a bag flattener or • Place in up to 3 locations
additional conveying line • MRPT End Effector
- Auto Adjustment between bag widths
- Integral pallet forks and slip sheet
E BAG FLATTENER handling option available
Bag Flattener LIFT TABLE
• Conditions filled bag for palletizer • Fixed or Adjustable Height
• PVC Flat Belts • Square or Round Options
• Compression Type
