pneumatic conveying systems

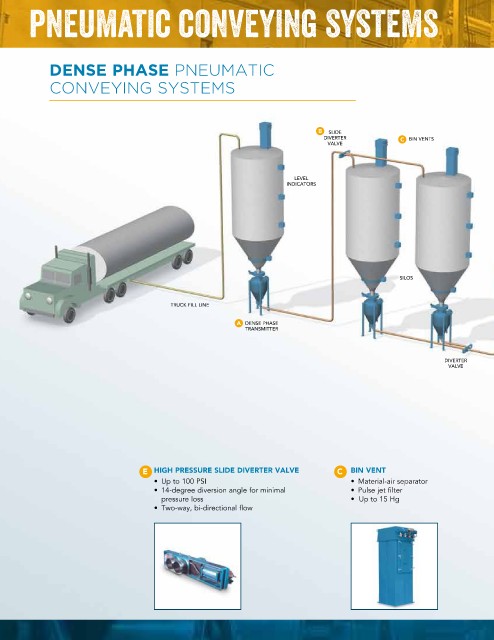

DENSE PHASE PNEUMATIC
CONVEYING SYSTEMS
B SLIDE
DIVERTER C BIN VENTS
VALVE
LEVEL
INDICATORS
SILOS
TRUCK FILL LINE
A DENSE PHASE
TRANSMITTER
DIVERTER
VALVE
E HIGH PRESSURE SLIDE DIVERTER VALVE C BIN VENT
• Up to 100 PSI • Material-air separator
• 14-degree diversion angle for minimal • Pulse jet filter
pressure loss • Up to 15 Hg
• Two-way, bi-directional flow
