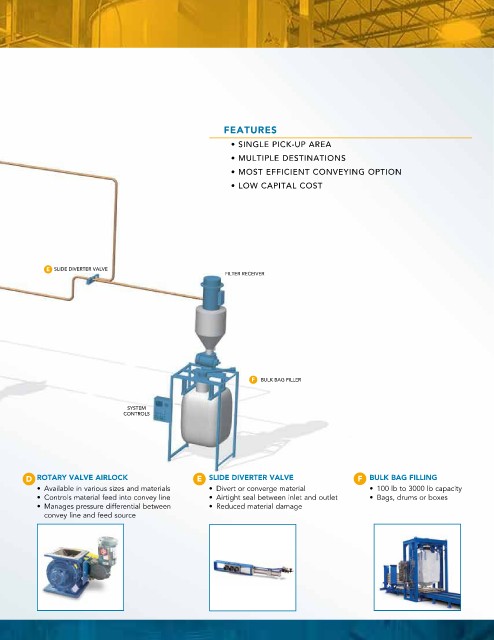

pneumatic conveying systems
FEATURES
• SINGLE PICK-UP AREA
• MULTIPLE DESTINATIONS
• MOST EFFICIENT CONVEYING OPTION
• LOW CAPITAL COST
E SLIDE DIVERTER VALVE
FILTER RECEIVER
ROTARY
VALVE
F BULK BAG FILLER
SYSTEM
CONTROLS
D ROTARY VALVE AIRLOCK E SLIDE DIVERTER VALVE F BULK BAG FILLING
• Available in various sizes and materials • Divert or converge material • 100 lb to 3000 lb capacity
• Controls material feed into convey line • Airtight seal between inlet and outlet • Bags, drums or boxes
• Manages pressure differential between • Reduced material damage
convey line and feed source
