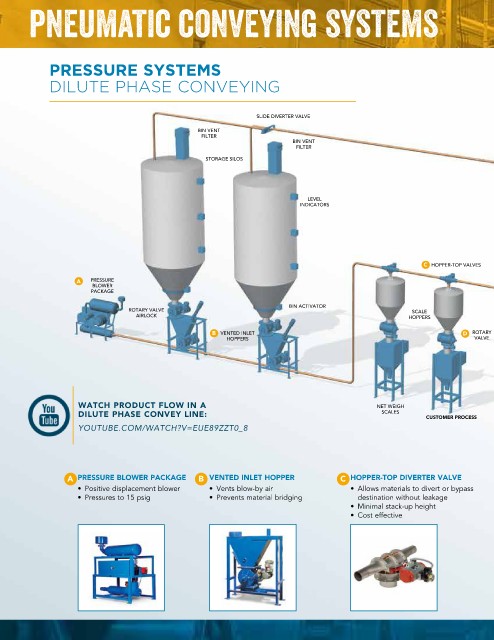

pneumatic conveying systems
PRESSURE SYSTEMS
DILUTE PHASE CONVEYING
SLIDE DIVERTER VALVE
BIN VENT
FILTER
BIN VENT
FILTER
STORAGE SILOS
LEVEL
INDICATORS
C HOPPER-TOP VALVES
A PRESSURE
BLOWER
PACKAGE
BIN ACTIVATOR
ROTARY VALVE SCALE
AIRLOCK HOPPERS
B VENTED INLET D ROTARY
HOPPERS VALVE
WATCH PRODUCT FLOW IN A NET WEIGH
DILUTE PHASE CONVEY LINE: SCALES CUSTOMER PROCESS
YOUTUBE.COM/WATCH?V=EUE89ZZT0_8
A PRESSURE BLOWER PACKAGE B VENTED INLET HOPPER C HOPPER-TOP DIVERTER VALVE
• Positive displacement blower • Vents blow-by air • Allows materials to divert or bypass
• Pressures to 15 psig • Prevents material bridging destination without leakage
• Minimal stack-up height
• Cost effective
