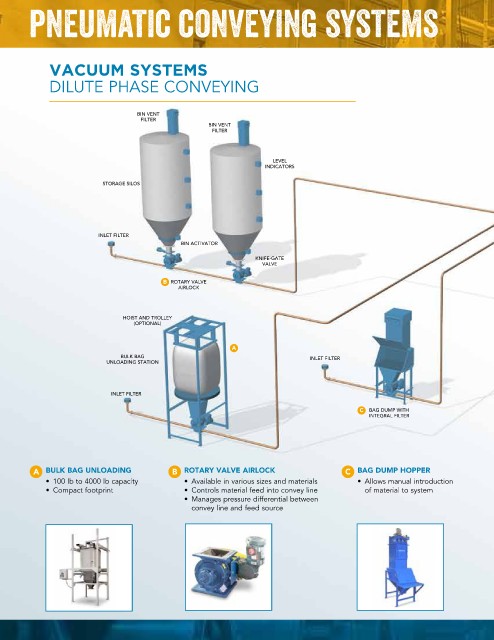

pneumatic conveying systems
VACUUM SYSTEMS
DILUTE PHASE CONVEYING
BIN VENT
FILTER
BIN VENT
FILTER
LEVEL
INDICATORS
STORAGE SILOS
INLET FILTER
BIN ACTIVATOR
KNIFE-GATE
VALVE
B ROTARY VALVE
AIRLOCK
HOIST AND TROLLEY
(OPTIONAL)
A
BULK BAG INLET FILTER
UNLOADING STATION
INLET FILTER
C BAG DUMP WITH
INTEGRAL FILTER
A BULK BAG UNLOADING B ROTARY VALVE AIRLOCK C BAG DUMP HOPPER
• 100 lb to 4000 lb capacity • Available in various sizes and materials • Allows manual introduction
• Compact footprint • Controls material feed into convey line of material to system
• Manages pressure differential between
convey line and feed source
