pneumatic conveying systems

ECO PHASE PNEUMATIC
CONVEYING SYSTEMS

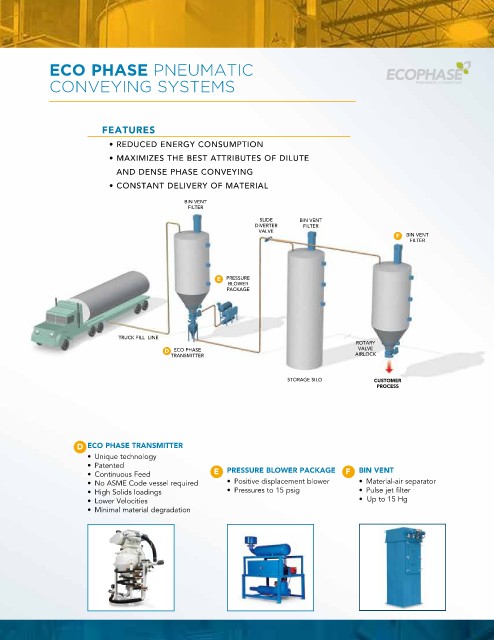

FEATURES
• REDUCED ENERGY CONSUMPTION
• MAXIMIZES THE BEST ATTRIBUTES OF DILUTE
AND DENSE PHASE CONVEYING
• CONSTANT DELIVERY OF MATERIAL

BIN VENT
FILTER
SLIDE BIN VENT
DIVERTER FILTER
VALVE
F BIN VENT
FILTER

E PRESSURE
BLOWER
PACKAGE

TRUCK FILL LINE
ROTARY
D ECO PHASE VALVE
TRANSMITTER AIRLOCK

STORAGE SILO CUSTOMER
PROCESS

ROTARY VALVE AIRLOCK D ECO PHASE TRANSMITTER
WITH CAVITY AIR PURGE • Unique technology
• Reduces abrasion on rotor, • Patented
cylinder and end plates • Continuous Feed E PRESSURE BLOWER PACKAGE F BIN VENT
• Purges material from between • No ASME Code vessel required • Positive displacement blower • Material-air separator
end shroud and end plates • High Solids loadings • Pressures to 15 psig • Pulse jet filter
• Patented design • Lower Velocities • Up to 15 Hg
• Minimal material degradation
