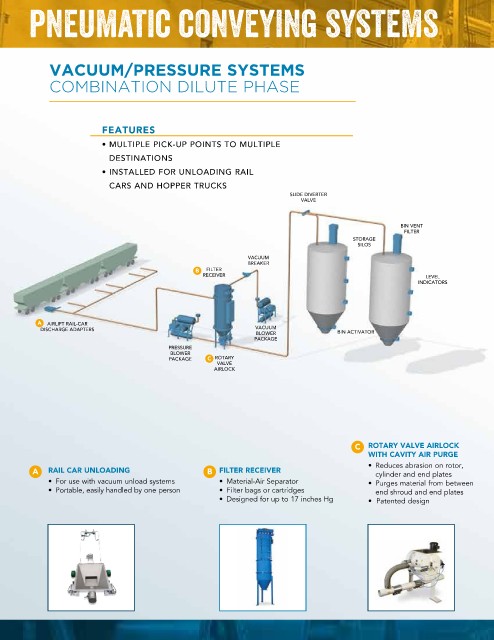

pneumatic conveying systems

VACUUM/PRESSURE SYSTEMS

COMBINATION DILUTE PHASE

FEATURES
• MULTIPLE PICK-UP POINTS TO MULTIPLE
DESTINATIONS
• INSTALLED FOR UNLOADING RAIL
CARS AND HOPPER TRUCKS
SLIDE DIVERTER
VALVE

BIN VENT
FILTER
STORAGE
SILOS
VACUUM
BREAKER
B FILTER
RECEIVER LEVEL
INDICATORS

A AIRLIFT RAIL-CAR
DISCHARGE ADAPTERS VACUUM
BLOWER BIN ACTIVATOR
PACKAGE
PRESSURE
BLOWER
PACKAGE C ROTARY
VALVE
AIRLOCK

C ROTARY VALVE AIRLOCK
WITH CAVITY AIR PURGE
• Reduces abrasion on rotor,
A RAIL CAR UNLOADING B FILTER RECEIVER cylinder and end plates
• For use with vacuum unload systems • Material-Air Separator • Purges material from between
• Portable, easily handled by one person • Filter bags or cartridges end shroud and end plates
• Designed for up to 17 inches Hg • Patented design
