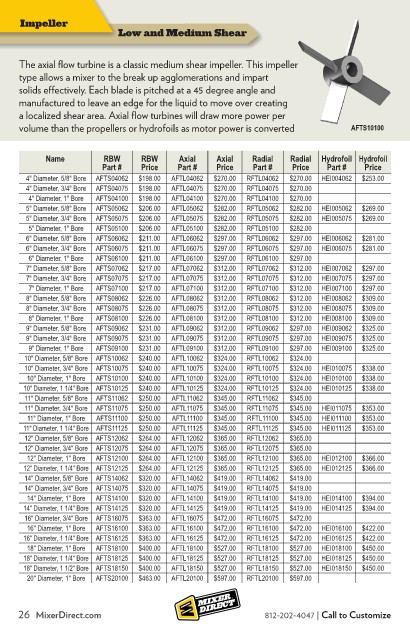

Impeller
Low and Medium Shear

The axial flow turbine is a classic medium shear impeller. This impeller
type allows a mixer to the break up agglomerations and impart
solids effectively. Each blade is pitched at a 45 degree angle and
manufactured to leave an edge for the liquid to move over creating
a localized shear area. Axial flow turbines will draw more power per
volume than the propellers or hydrofoils as motor power is converted AFTS10100

Name RBW RBW Axial Axial Radial Radial Hydrofoil Hydrofoil
Part # Price Part # Price Part # Price Part # Price
4" Diameter, 5/8" Bore AFTS04062 $198.00 AFTL04062 $270.00 RFTL04062 $270.00 HEI004062 $253.00
4" Diameter, 3/4" Bore AFTS04075 $198.00 AFTL04075 $270.00 RFTL04075 $270.00
4" Diameter, 1" Bore AFTS04100 $198.00 AFTL04100 $270.00 RFTL04100 $270.00
5" Diameter, 5/8" Bore AFTS05062 $206.00 AFTL05062 $282.00 RFTL05062 $282.00 HEI005062 $269.00
5" Diameter, 3/4" Bore AFTS05075 $206.00 AFTL05075 $282.00 RFTL05075 $282.00 HEI005075 $269.00
5" Diameter, 1" Bore AFTS05100 $206.00 AFTL05100 $282.00 RFTL05100 $282.00
6" Diameter, 5/8" Bore AFTS06062 $211.00 AFTL06062 $297.00 RFTL06062 $297.00 HEI006062 $281.00
6" Diameter, 3/4" Bore AFTS06075 $211.00 AFTL06075 $297.00 RFTL06075 $297.00 HEI006075 $281.00
6" Diameter, 1" Bore AFTS06100 $211.00 AFTL06100 $297.00 RFTL06100 $297.00
7" Diameter, 5/8" Bore AFTS07062 $217.00 AFTL07062 $312.00 RFTL07062 $312.00 HEI007062 $297.00
7" Diameter, 3/4" Bore AFTS07075 $217.00 AFTL07075 $312.00 RFTL07075 $312.00 HEI007075 $297.00
7" Diameter, 1" Bore AFTS07100 $217.00 AFTL07100 $312.00 RFTL07100 $312.00 HEI007100 $297.00
8" Diameter, 5/8" Bore AFTS08062 $226.00 AFTL08062 $312.00 RFTL08062 $312.00 HEI008062 $309.00
8" Diameter, 3/4" Bore AFTS08075 $226.00 AFTL08075 $312.00 RFTL08075 $312.00 HEI008075 $309.00
8" Diameter, 1" Bore AFTS08100 $226.00 AFTL08100 $312.00 RFTL08100 $312.00 HEI008100 $309.00
9" Diameter, 5/8" Bore AFTS09062 $231.00 AFTL09062 $312.00 RFTL09062 $297.00 HEI009062 $325.00
9" Diameter, 3/4" Bore AFTS09075 $231.00 AFTL09075 $312.00 RFTL09075 $297.00 HEI009075 $325.00
9" Diameter, 1" Bore AFTS09100 $231.00 AFTL09100 $312.00 RFTL09100 $297.00 HEI009100 $325.00
10" Diameter, 5/8" Bore AFTS10062 $240.00 AFTL10062 $324.00 RFTL10062 $324.00
10" Diameter, 3/4" Bore AFTS10075 $240.00 AFTL10075 $324.00 RFTL10075 $324.00 HEI010075 $338.00
10" Diameter, 1" Bore AFTS10100 $240.00 AFTL10100 $324.00 RFTL10100 $324.00 HEI010100 $338.00
10" Diameter, 1 1/4" Bore AFTS10125 $240.00 AFTL10125 $324.00 RFTL10125 $324.00 HEI010125 $338.00
11" Diameter, 5/8" Bore AFTS11062 $250.00 AFTL11062 $345.00 RFTL11062 $345.00
11" Diameter, 3/4" Bore AFTS11075 $250.00 AFTL11075 $345.00 RFTL11075 $345.00 HEI011075 $353.00
11" Diameter, 1" Bore AFTS11100 $250.00 AFTL11100 $345.00 RFTL11100 $345.00 HEI011100 $353.00
11" Diameter, 1 1/4" Bore AFTS11125 $250.00 AFTL11125 $345.00 RFTL11125 $345.00 HEI011125 $353.00
12" Diameter, 5/8" Bore AFTS12062 $264.00 AFTL12062 $365.00 RFTL12062 $365.00
12" Diameter, 3/4" Bore AFTS12075 $264.00 AFTL12075 $365.00 RFTL12075 $365.00
12" Diameter, 1" Bore AFTS12100 $264.00 AFTL12100 $365.00 RFTL12100 $365.00 HEI012100 $366.00
12" Diameter, 1 1/4" Bore AFTS12125 $264.00 AFTL12125 $365.00 RFTL12125 $365.00 HEI012125 $366.00
14" Diameter, 5/8" Bore AFTS14062 $320.00 AFTL14062 $419.00 RFTL14062 $419.00
14" Diameter, 3/4" Bore AFTS14075 $320.00 AFTL14075 $419.00 RFTL14075 $419.00
14" Diameter, 1" Bore AFTS14100 $320.00 AFTL14100 $419.00 RFTL14100 $419.00 HEI014100 $394.00
14" Diameter, 1 1/4" Bore AFTS14125 $320.00 AFTL14125 $419.00 RFTL14125 $419.00 HEI014125 $394.00
16" Diameter, 3/4" Bore AFTS16075 $363.00 AFTL16075 $472.00 RFTL16075 $472.00
16" Diameter, 1" Bore AFTS16100 $363.00 AFTL16100 $472.00 RFTL16100 $472.00 HEI016100 $422.00
16" Diameter, 1 1/4" Bore AFTS16125 $363.00 AFTL16125 $472.00 RFTL16125 $472.00 HEI016125 $422.00
18" Diameter, 1" Bore AFTS18100 $400.00 AFTL18100 $527.00 RFTL18100 $527.00 HEI018100 $450.00
18" Diameter, 1 1/4" Bore AFTS18125 $400.00 AFTL18125 $527.00 RFTL18125 $527.00 HEI018125 $450.00
18" Diameter, 1 1/2" Bore AFTS18150 $400.00 AFTL18150 $527.00 RFTL18150 $527.00 HEI018150 $450.00
20" Diameter, 1" Bore AFTS20100 $463.00 AFTL20100 $597.00 RFTL20100 $597.00

26 MixerDirect.com 812-202-4047 | Call to Customize
