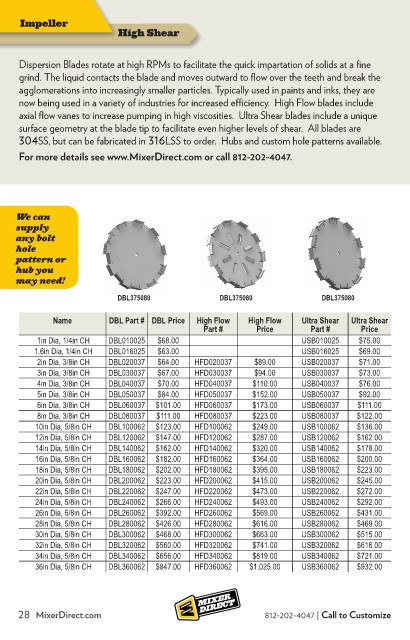

Impeller
High Shear

Dispersion Blades rotate at high RPMs to facilitate the quick impartation of solids at a fine
grind. The liquid contacts the blade and moves outward to flow over the teeth and break the
agglomerations into increasingly smaller particles. Typically used in paints and inks, they are
now being used in a variety of industries for increased efficiency. High Flow blades include
axial flow vanes to increase pumping in high viscosities. Ultra Shear blades include a unique
surface geometry at the blade tip to facilitate even higher levels of shear. All blades are
304SS, but can be fabricated in 316LSS to order. Hubs and custom hole patterns available.
For more details see www.MixerDirect.com or call 812-202-4047.

We can
supply
any bolt
hole
pattern or
hub you
may need!
DBL375080 DBL375080 DBL375080

Name DBL Part # DBL Price High Flow High Flow Ultra Shear Ultra Shear
Part # Price Part # Price
1in Dia, 1/4in CH DBL010025 $68.00 USB010025 $75.00
1.6in Dia, 1/4in CH DBL016025 $63.00 USB016025 $69.00
2in Dia, 3/8in CH DBL020037 $64.00 HFD020037 $89.00 USB020037 $71.00
3in Dia, 3/8in CH DBL030037 $67.00 HFD030037 $94.00 USB030037 $73.00
4in Dia, 3/8in CH DBL040037 $70.00 HFD040037 $110.00 USB040037 $76.00
5in Dia, 3/8in CH DBL050037 $84.00 HFD050037 $152.00 USB050037 $92.00
6in Dia, 3/8in CH DBL060037 $101.00 HFD060037 $173.00 USB060037 $111.00
8in Dia, 3/8in CH DBL080037 $111.00 HFD080037 $223.00 USB080037 $122.00
10in Dia, 5/8in CH DBL100062 $123.00 HFD100062 $249.00 USB100062 $136.00
12in Dia, 5/8in CH DBL120062 $147.00 HFD120062 $287.00 USB120062 $162.00
14in Dia, 5/8in CH DBL140062 $162.00 HFD140062 $320.00 USB140062 $178.00
16in Dia, 5/8in CH DBL160062 $182.00 HFD160062 $364.00 USB160062 $200.00
18in Dia, 5/8in CH DBL180062 $202.00 HFD180062 $395.00 USB180062 $223.00
20in Dia, 5/8in CH DBL200062 $223.00 HFD200062 $415.00 USB200062 $245.00
22in Dia, 5/8in CH DBL220062 $247.00 HFD220062 $473.00 USB220062 $272.00
24in Dia, 5/8in CH DBL240062 $266.00 HFD240062 $493.00 USB240062 $292.00
26in Dia, 5/8in CH DBL260062 $392.00 HFD260062 $569.00 USB260062 $431.00
28in Dia, 5/8in CH DBL280062 $426.00 HFD280062 $616.00 USB280062 $469.00
30in Dia, 5/8in CH DBL300062 $468.00 HFD300062 $663.00 USB300062 $515.00
32in Dia, 5/8in CH DBL320062 $560.00 HFD320062 $741.00 USB320062 $616.00
34in Dia, 5/8in CH DBL340062 $656.00 HFD340062 $819.00 USB340062 $721.00
36in Dia, 5/8in CH DBL360062 $847.00 HFD360062 $1,025.00 USB360062 $932.00

28 MixerDirect.com 812-202-4047 | Call to Customize
