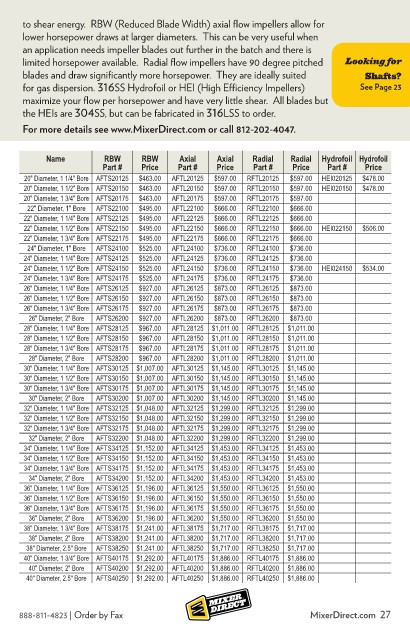

to shear energy. RBW (Reduced Blade Width) axial flow impellers allow for
lower horsepower draws at larger diameters. This can be very useful when
an application needs impeller blades out further in the batch and there is
limited horsepower available. Radial flow impellers have 90 degree pitched Looking for
blades and draw significantly more horsepower. They are ideally suited Shafts?
for gas dispersion. 316SS Hydrofoil or HEI (High Efficiency Impellers) See Page 23
maximize your flow per horsepower and have very little shear. All blades but
the HEIs are 304SS, but can be fabricated in 316LSS to order.
For more details see www.MixerDirect.com or call 812-202-4047.

Name RBW RBW Axial Axial Radial Radial Hydrofoil Hydrofoil
Part # Price Part # Price Part # Price Part # Price
20" Diameter, 1 1/4" Bore AFTS20125 $463.00 AFTL20125 $597.00 RFTL20125 $597.00 HEI020125 $478.00
20" Diameter, 1 1/2" Bore AFTS20150 $463.00 AFTL20150 $597.00 RFTL20150 $597.00 HEI020150 $478.00
20" Diameter, 1 3/4" Bore AFTS20175 $463.00 AFTL20175 $597.00 RFTL20175 $597.00
22" Diameter, 1" Bore AFTS22100 $495.00 AFTL22100 $666.00 RFTL22100 $666.00
22" Diameter, 1 1/4" Bore AFTS22125 $495.00 AFTL22125 $666.00 RFTL22125 $666.00
22" Diameter, 1 1/2" Bore AFTS22150 $495.00 AFTL22150 $666.00 RFTL22150 $666.00 HEI022150 $506.00
22" Diameter, 1 3/4" Bore AFTS22175 $495.00 AFTL22175 $666.00 RFTL22175 $666.00
24" Diameter, 1" Bore AFTS24100 $525.00 AFTL24100 $736.00 RFTL24100 $736.00
24" Diameter, 1 1/4" Bore AFTS24125 $525.00 AFTL24125 $736.00 RFTL24125 $736.00
24" Diameter, 1 1/2" Bore AFTS24150 $525.00 AFTL24150 $736.00 RFTL24150 $736.00 HEI024150 $534.00
24" Diameter, 1 3/4" Bore AFTS24175 $525.00 AFTL24175 $736.00 RFTL24175 $736.00
26" Diameter, 1 1/4" Bore AFTS26125 $927.00 AFTL26125 $873.00 RFTL26125 $873.00
26" Diameter, 1 1/2" Bore AFTS26150 $927.00 AFTL26150 $873.00 RFTL26150 $873.00
26" Diameter, 1 3/4" Bore AFTS26175 $927.00 AFTL26175 $873.00 RFTL26175 $873.00
26" Diameter, 2" Bore AFTS26200 $927.00 AFTL26200 $873.00 RFTL26200 $873.00
28" Diameter, 1 1/4" Bore AFTS28125 $967.00 AFTL28125 $1,011.00 RFTL28125 $1,011.00
28" Diameter, 1 1/2" Bore AFTS28150 $967.00 AFTL28150 $1,011.00 RFTL28150 $1,011.00
28" Diameter, 1 3/4" Bore AFTS28175 $967.00 AFTL28175 $1,011.00 RFTL28175 $1,011.00
28" Diameter, 2" Bore AFTS28200 $967.00 AFTL28200 $1,011.00 RFTL28200 $1,011.00
30" Diameter, 1 1/4" Bore AFTS30125 $1,007.00 AFTL30125 $1,145.00 RFTL30125 $1,145.00
30" Diameter, 1 1/2" Bore AFTS30150 $1,007.00 AFTL30150 $1,145.00 RFTL30150 $1,145.00
30" Diameter, 1 3/4" Bore AFTS30175 $1,007.00 AFTL30175 $1,145.00 RFTL30175 $1,145.00
30" Diameter, 2" Bore AFTS30200 $1,007.00 AFTL30200 $1,145.00 RFTL30200 $1,145.00
32" Diameter, 1 1/4" Bore AFTS32125 $1,048.00 AFTL32125 $1,299.00 RFTL32125 $1,299.00
32" Diameter, 1 1/2" Bore AFTS32150 $1,048.00 AFTL32150 $1,299.00 RFTL32150 $1,299.00
32" Diameter, 1 3/4" Bore AFTS32175 $1,048.00 AFTL32175 $1,299.00 RFTL32175 $1,299.00
32" Diameter, 2" Bore AFTS32200 $1,048.00 AFTL32200 $1,299.00 RFTL32200 $1,299.00
34" Diameter, 1 1/4" Bore AFTS34125 $1,152.00 AFTL34125 $1,453.00 RFTL34125 $1,453.00
34" Diameter, 1 1/2" Bore AFTS34150 $1,152.00 AFTL34150 $1,453.00 RFTL34150 $1,453.00
34" Diameter, 1 3/4" Bore AFTS34175 $1,152.00 AFTL34175 $1,453.00 RFTL34175 $1,453.00
34" Diameter, 2" Bore AFTS34200 $1,152.00 AFTL34200 $1,453.00 RFTL34200 $1,453.00
36" Diameter, 1 1/4" Bore AFTS36125 $1,196.00 AFTL36125 $1,550.00 RFTL36125 $1,550.00
36" Diameter, 1 1/2" Bore AFTS36150 $1,196.00 AFTL36150 $1,550.00 RFTL36150 $1,550.00
36" Diameter, 1 3/4" Bore AFTS36175 $1,196.00 AFTL36175 $1,550.00 RFTL36175 $1,550.00
36" Diameter, 2" Bore AFTS36200 $1,196.00 AFTL36200 $1,550.00 RFTL36200 $1,550.00
38" Diameter, 1 3/4" Bore AFTS38175 $1,241.00 AFTL38175 $1,717.00 RFTL38175 $1,717.00
38" Diameter, 2" Bore AFTS38200 $1,241.00 AFTL38200 $1,717.00 RFTL38200 $1,717.00
38" Diameter, 2.5" Bore AFTS38250 $1,241.00 AFTL38250 $1,717.00 RFTL38250 $1,717.00
40" Diameter, 1 3/4" Bore AFTS40175 $1,292.00 AFTL40175 $1,886.00 RFTL40175 $1,886.00
40" Diameter, 2" Bore AFTS40200 $1,292.00 AFTL40200 $1,886.00 RFTL40200 $1,886.00
40" Diameter, 2.5" Bore AFTS40250 $1,292.00 AFTL40250 $1,886.00 RFTL40250 $1,886.00

888-811-4823 | Order by Fax MixerDirect.com 27
