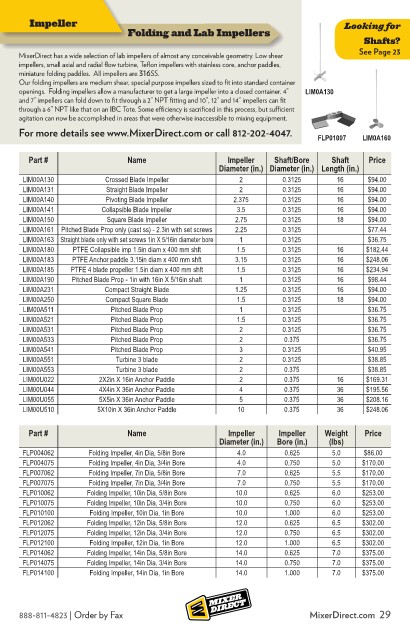

Impeller Looking for
Folding and Lab Impellers
Shafts?
See Page 23
MixerDirect has a wide selection of lab impellers of almost any conceivable geometry. Low shear
impellers, small axial and radial flow turbine, Teflon impellers with stainless core, anchor paddles,
miniature folding paddles. All impellers are 316SS.
Our folding impellers are medium shear, special purpose impellers sized to fit into standard container
openings. Folding impellers allow a manufacturer to get a large impeller into a closed container. 4” LIM0A130
and 7” impellers can fold down to fit through a 2” NPT fitting and 10”, 12” and 14” impellers can fit
through a 6” NPT like that on an IBC Tote. Some efficiency is sacrificed in this process, but sufficient
agitation can now be accomplished in areas that were otherwise inaccessible to mixing equipment.
For more details see www.MixerDirect.com or call 812-202-4047. FLP01007 LIM0A160

Part # Name Impeller Shaft/Bore Shaft Price
Diameter (in.) Diameter (in.) Length (in.)
LIM00A130 Crossed Blade Impeller 2 0.3125 16 $94.00
LIM00A131 Straight Blade Impeller 2 0.3125 16 $94.00
LIM00A140 Pivoting Blade Impeller 2.375 0.3125 16 $94.00
LIM00A141 Collapsible Blade Impeller 3.5 0.3125 16 $94.00
LIM00A150 Square Blade Impeller 2.75 0.3125 18 $94.00
LIM00A161 Pitched Blade Prop only (cast ss) - 2.3in with set screws 2.25 0.3125 $77.44
LIM00A163 Straight blade only with set screws 1in X 5/16in diameter bore 1 0.3125 $36.75
LIM00A180 PTFE Collapsible imp 1.5in diam x 400 mm shft 1.5 0.3125 16 $182.44
LIM00A183 PTFE Anchor paddle 3.15in diam x 400 mm shft 3.15 0.3125 16 $248.06
LIM00A185 PTFE 4 blade propeller 1.5in diam x 400 mm shft 1.5 0.3125 16 $234.94
LIM00A190 Pitched Blade Prop - 1in with 16in X 5/16in shaft 1 0.3125 16 $98.44
LIM00A231 Compact Straight Blade 1.25 0.3125 16 $94.00
LIM00A250 Compact Square Blade 1.5 0.3125 18 $94.00
LIM00A511 Pitched Blade Prop 1 0.3125 $36.75
LIM00A521 Pitched Blade Prop 1.5 0.3125 $36.75
LIM00A531 Pitched Blade Prop 2 0.3125 $36.75
LIM00A533 Pitched Blade Prop 2 0.375 $36.75
LIM00A541 Pitched Blade Prop 3 0.3125 $40.95
LIM00A551 Turbine 3 blade 2 0.3125 $38.85
LIM00A553 Turbine 3 blade 2 0.375 $38.85
LIM00U022 2X2in X 16in Anchor Paddle 2 0.375 16 $169.31
LIM00U044 4X4in X 36in Anchor Paddle 4 0.375 36 $195.56
LIM00U055 5X5in X 36in Anchor Paddle 5 0.375 36 $208.16
LIM00U510 5X10in X 36in Anchor Paddle 10 0.375 36 $248.06
Part # Name Impeller Impeller Weight Price
Diameter (in.) Bore (in.) (lbs)
FLP004062 Folding Impeller, 4in Dia, 5/8in Bore 4.0 0.625 5.0 $86.00
FLP004075 Folding Impeller, 4in Dia, 3/4in Bore 4.0 0.750 5.0 $170.00
FLP007062 Folding Impeller, 7in Dia, 5/8in Bore 7.0 0.625 5.5 $170.00
FLP007075 Folding Impeller, 7in Dia, 3/4in Bore 7.0 0.750 5.5 $170.00
FLP010062 Folding Impeller, 10in Dia, 5/8in Bore 10.0 0.625 6.0 $253.00
FLP010075 Folding Impeller, 10in Dia, 3/4in Bore 10.0 0.750 6.0 $253.00
FLP010100 Folding Impeller, 10in Dia, 1in Bore 10.0 1.000 6.0 $253.00
FLP012062 Folding Impeller, 12in Dia, 5/8in Bore 12.0 0.625 6.5 $302.00
FLP012075 Folding Impeller, 12in Dia, 3/4in Bore 12.0 0.750 6.5 $302.00
FLP012100 Folding Impeller, 12in Dia, 1in Bore 12.0 1.000 6.5 $302.00
FLP014062 Folding Impeller, 14in Dia, 5/8in Bore 14.0 0.625 7.0 $375.00
FLP014075 Folding Impeller, 14in Dia, 3/4in Bore 14.0 0.750 7.0 $375.00
FLP014100 Folding Impeller, 14in Dia, 1in Bore 14.0 1.000 7.0 $375.00

888-811-4823 | Order by Fax MixerDirect.com 29
