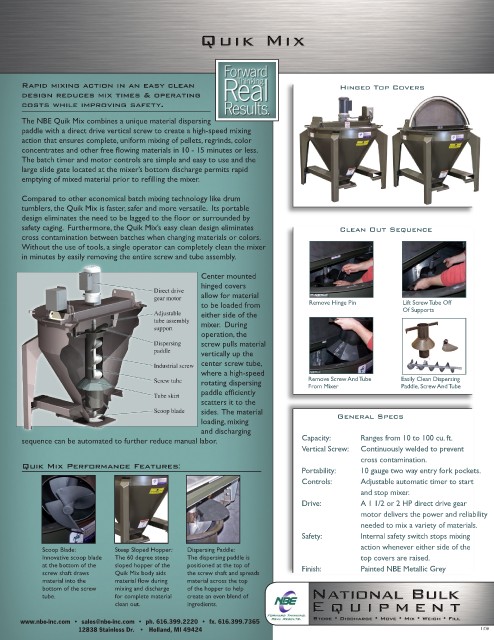

Rapid mixing action in an easy clean Hinged Top Covers
design reduces mix times & operating
costs while improving safety.
The NBE Quik Mix combines a unique material dispersing
paddle with a direct drive vertical screw to create a high-speed mixing
action that ensures complete, uniform mixing of pellets, regrinds, color
concentrates and other free flowing materials in 10 - 15 minutes or less.
The batch timer and motor controls are simple and easy to use and the
large slide gate located at the mixer’s bottom discharge permits rapid
emptying of mixed material prior to refilling the mixer.

Compared to other economical batch mixing technology like drum
tumblers, the Quik Mix is faster, safer and more versatile. Its portable
design eliminates the need to be lagged to the floor or surrounded by
safety caging. Furthermore, the Quik Mix’s easy clean design eliminates Clean Out Sequence
cross contamination between batches when changing materials or colors.
Without the use of tools, a single operator can completely clean the mixer
in minutes by easily removing the entire screw and tube assembly.

Center mounted
hinged covers
allow for material
to be loaded from Remove Hinge Pin Lift Screw Tube Off
either side of the Of Supports
mixer. During
operation, the
screw pulls material
vertically up the
center screw tube,
where a high-speed
rotating dispersing Remove Screw And Tube Easily Clean Dispersing
Paddle, Screw And Tube
From Mixer
paddle efficiently
scatters it to the
sides. The material General Specs
loading, mixing
and discharging
sequence can be automated to further reduce manual labor. Capacity: Ranges from 10 to 100 cu. ft.
Vertical Screw: Continuously welded to prevent
cross contamination.
Portability: 10 gauge two way entry fork pockets.
Controls: Adjustable automatic timer to start
and stop mixer.
Drive: A 1 1/2 or 2 HP direct drive gear
motor delivers the power and reliability
needed to mix a variety of materials.
Safety: Internal safety switch stops mixing
Scoop Blade: Steep Sloped Hopper: Dispersing Paddle: action whenever either side of the
Innovative scoop blade The 60 degree steep The dispersing paddle is top covers are raised.
at the bottom of the sloped hopper of the positioned at the top of Finish: Painted NBE Metallic Grey
screw shaft draws Quik Mix body aids the screw shaft and spreads
material into the material flow during material across the top
bottom of the screw mixing and discharge of the hopper to help
tube. for complete material create an even blend of
clean out. ingredients.

www.nbe-inc.com • sales@nbe-inc.com • ph. 616.399.2220 • fx. 616.399.7365
12838 Stainless Dr. • Holland, MI 49424 1/08
