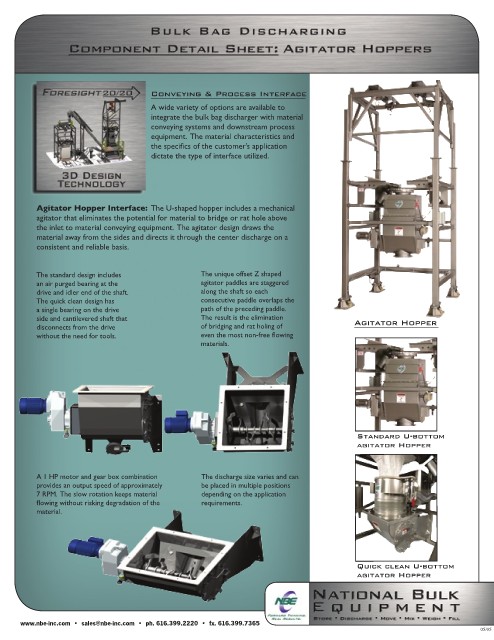

Conveying & Process Interface
A wide variety of options are available to
integrate the bulk bag discharger with material
conveying systems and downstream process
equipment. The material characteristics and
the specifics of the customer’s application
dictate the type of interface utilized.

Agitator Hopper Interface: The U-shaped hopper includes a mechanical
agitator that eliminates the potential for material to bridge or rat hole above
the inlet to material conveying equipment. The agitator design draws the
material away from the sides and directs it through the center discharge on a
consistent and reliable basis.

The standard design includes The unique offset Z shaped
an air purged bearing at the agitator paddles are staggered
drive and idler end of the shaft. along the shaft so each
The quick clean design has consecutive paddle overlaps the
a single bearing on the drive path of the preceding paddle.
side and cantilevered shaft that The result is the elimination Agitator Hopper
disconnects from the drive of bridging and rat holing of
without the need for tools. even the most non-free flowing
materials.

Standard U-bottom
agitator Hopper

A 1 HP motor and gear box combination The discharge size varies and can
provides an output speed of approximately be placed in multiple positions
7 RPM. The slow rotation keeps material depending on the application
flowing without risking degradation of the requirements.
material.

Quick clean U-bottom
agitator Hopper
